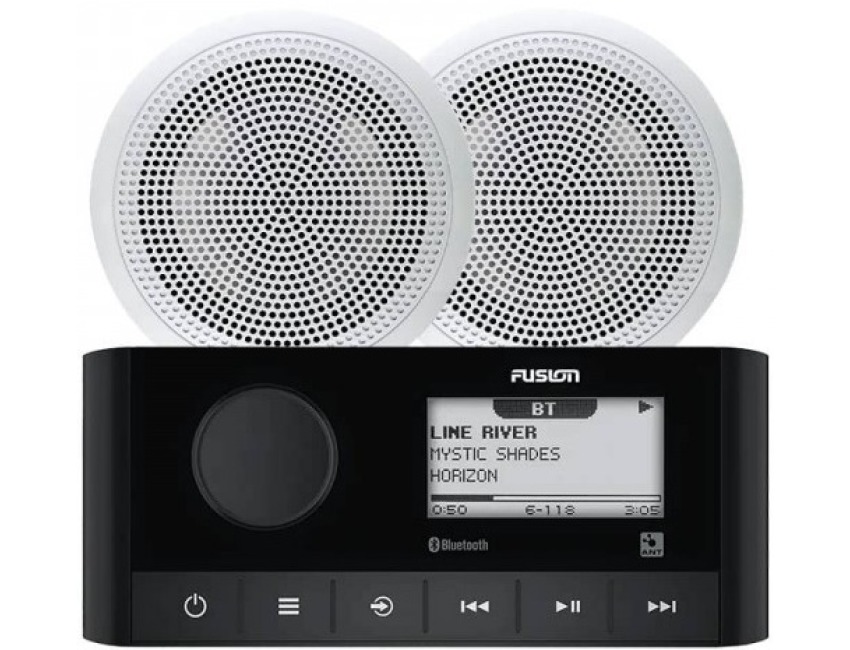

Fusion RA60 + SPEAKERS - Marine Audio System Bundle - MS-RA60KCW

Fusion MS-RA60 Stereo & Speaker Kit

A bundle of the RA60 Stereo, Screen cover, 6m Speaker cables, AM/FM Stealth antenna and the 6.5" EL Classic White Marine speakers.

MS-RA60 Stereo

A compact Marine stereo with built in DAB Tuner. The MS-RA60 is an affordable audio system, featuring modern aesthetics, Multi-Zone™ technology in two zones and advanced connectivity options in a compact form factor. Designed for quality audio entertainment in the harsh marine environment, a perimeter bonded, anti-fogging LCD is integrated into the IPX6 and IPX7 water resistant black front face – making the MS-RA60 an attractive addition to your helm.

Built in DAB tuner
Sources AM / FM / BLUETOOTH / AUX x1 / DAB+
Bonded display so no fogging
Bluetooth and ANT+ wireless compatibility
Control from a Quatix Watch or from a Smartphone
Compact design
Drives 2 sets of speakers
Features

Multi-Zone Technology: Up to two independent audio zones are available for a customized listening experience across your boat, each with advanced localized audio options, including volume limits, zone naming, tone control, balance and more.

IPX6 and IPX7 Ingress Protection: The front panel of the MS-RA60 meets international IPX6 and IPX7 Water Ingress Protection standards, providing assurance that your product will perform and last in the harsh marine/outdoor environment when installed correctly (please refer to the installation instructions for specific details).

Retrofittable: The MS-RA60 is designed to fit in the MS-RA55 mounting profile, eliminating the need to alter your existing cutout, reducing complexity when upgrading your stereo system.

Class-D Amplifier Design: The built-in Class-D amplifier provides increased power while drawing less current than a standard Class-AB amplifier. The amplifier design delivers increased efficiency and power output, letting you enjoy your music at higher volumes for longer.

Wireless Software Updates: Over-the-air software updates are now available from your compatible device via BLUETOOTH® with the free Fusion-Link™ app, making it simple to keep the MS-RA60 up to date.

Fusion-Link Control (Wireless) via BLUETOOTH and ANT®: Download the free Fusion-Link remote control app for BLUETOOTH from the Apple App Store® or Google Play™ and enjoy the freedom of wireless control from your compatible device. Download the free Fusion-Link Lite app from the Connect IQ™ app to enable wireless control via ANT technology from your compatible Garmin watch.

2.3" Bonded Monochrome LCD: The monochrome LCD is perimeter bonded to improve durability and protection against condensation and fogging and is optimized for daylight viewing.

Modern Design Aesthetics: The monochrome LCD is incorporated into a black front face for ease of visibility and enhanced styling. The black front face blends in seamlessly with your dash, complementing other electronics and MFDs for a tidy, uniform and elegant installation.

Built-In DAB Module: The built-in DAB module supports the latest DAB and DAB+ broadcasts, allowing you to enjoy high quality digital radio streaming wherever DAB and DAB+ is supported (Europe and Australia only; does not support traffic and weather).

Specifications

Physical Dimensions (WxHxD): 156.9 × 68 × 103.2 mm
Weight: 316 g
Water Rating: IPX6 and IPX7 (front panel only, when properly installed)
Power Input: 10.8-16 VDC
Operating Temperature Range: 32° to 122° F (0° to 50° C)
Current (Max.): 15 A
BLUETOOTH® Wireless Range: Up to 30 ft (10 m)
ANT® Wireless Range: Up to 10 ft (3 m)
Compass-Safe Distance 5.9” (150 mm)
Display 2.3” perimeter bonded monochrome dot matrix LCD
Built-In Amplifier: Class-D (minimum 4 ohm impedance)
Peak Power: 180 W
Rated Power Output (4 ohm): 22 W rms x 4 @ 14.4 V input, 4 ohm, 10% THD
Fusion-Link Control: Yes (with compatible Apple® and Android devices)
Fusion-Link Lite Control: Yes (with compatible Garmin watch)
Multi-Zone Technology 2 zones
BLUETOOTH Wireless Technology: Yes
ANT Wireless Technology: Yes
DAB+: Yes (DAB tuner built-in)
Multi-Language Interface: Dutch / English / French / German / Italian / Spanish
Software Updates: Over-the-air software updates via BLUETOOTH wireless technology using the Fusion-Link app
Warranty: 1 year
Sources: AM / FM / BLUETOOTH / AUX x1 / DAB+ (available in Europe and Australia only)
Auxiliary Input: One RCA input (AUX)
AM / FM Radio: One Motorola antenna connector port
Speaker: 4 x speaker connections (2 amplified zones)
RCA Pre-Out (Left, Right and Subwoofer): 1 zone (requires external amplification)
Line Out: Zone 1: L + R (requires external amplification)
Subwoofer Out: Zone 1 (requires external amplification)
In The Box

MS-RA60 Stereo
Quick Start Manual
Installation Instructions
Cut out Template
Screw covers
RCA Wiring loom for Subout, Line out & Aux
Speaker & power wiring loom
