Czone - Meter Interface (MI) With Seal & Plug - 80-911-0005-00
Click to enlarge
Codex
MPN 80-911-0005-00
Delivery Information
Currently we only deliver to the UK (inc. Northern Ireland), Channel Islands, Norway, Australia, New Zealand, Canada and USA for online ordering - please contact us on sales@bottomlinemarine.com if you live elsewhere.
Free shipping on UK orders over £75 (£5.95 for UK orders under £75)
Excludes certain heavy items
All prices include UK VAT - No customs or duty fees for UK orders
Description

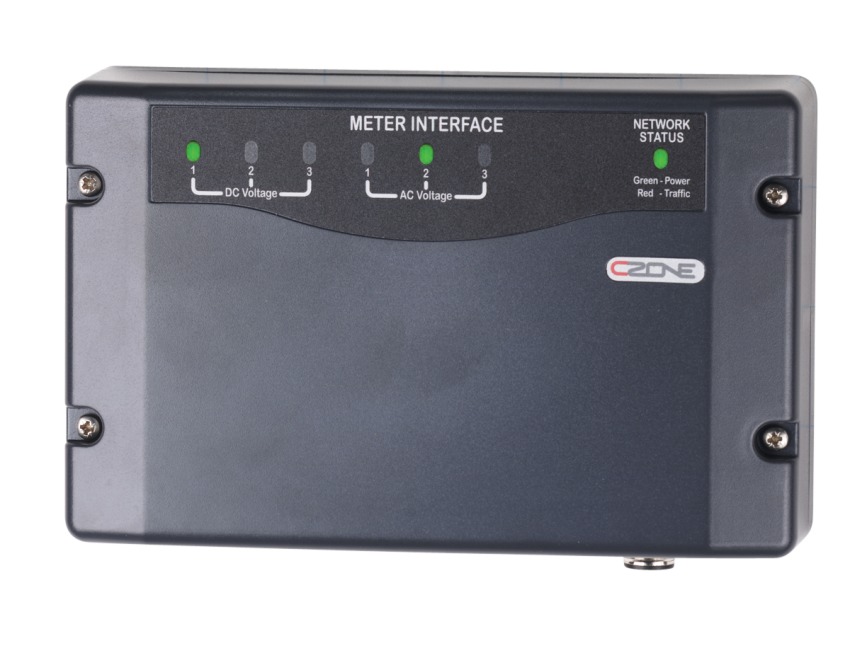

Czone - Meter Interface (MI) With Seal & Plug
Part No: 80-911-0005-00
The Meter Interface (MI) accepts inputs from external AC and DC power metering sensors such as: AC and DC voltage and amps, AC kWatts, and DC battery capacity in amp hours and percent remaining. All with user definable high and low alarms.
AC: 3 x AC voltage inputs (multi voltage), 2 x AC current inputs, Calculates true RMS power
DC: 3 x DC voltage inputs (multi voltage), 2 x DC current inputs, Calculates battery capacity as ampere hours and percentage charge remaining, Resolution for current metering down to 0.1 A
General: Dimensions, WxHxD: 6-3/32"×3-29/32"×1-5/8" 156×100×42 mm
IPX5 water ingress protection,
Outputs standard NMEA2000 power monitoring sentences
Specification List
| Country of Origin | NZ | Tariff Code | 85389099 |
|---|---|---|---|
| Type | MONITORING & INTERFACING / INTERFACES | Sub-Type | - |
| Weight | - |
