Blue Sea Systems Switch Circuit Breaker Panel - 12V 6 Position Waterproof - 4322

Click to enlarge

Code185188257400

MPN 4322

£60.02

Delivery Information

Currently we only deliver to the UK (inc. Northern Ireland), Channel Islands, Norway, Australia, New Zealand, Canada and USA for online ordering - please contact us on sales@bottomlinemarine.com if you live elsewhere.

Free shipping on UK orders over £75 (£5.95 for UK orders under £75)
Excludes certain heavy items
All prices include UK VAT - No customs or duty fees for UK orders

Description

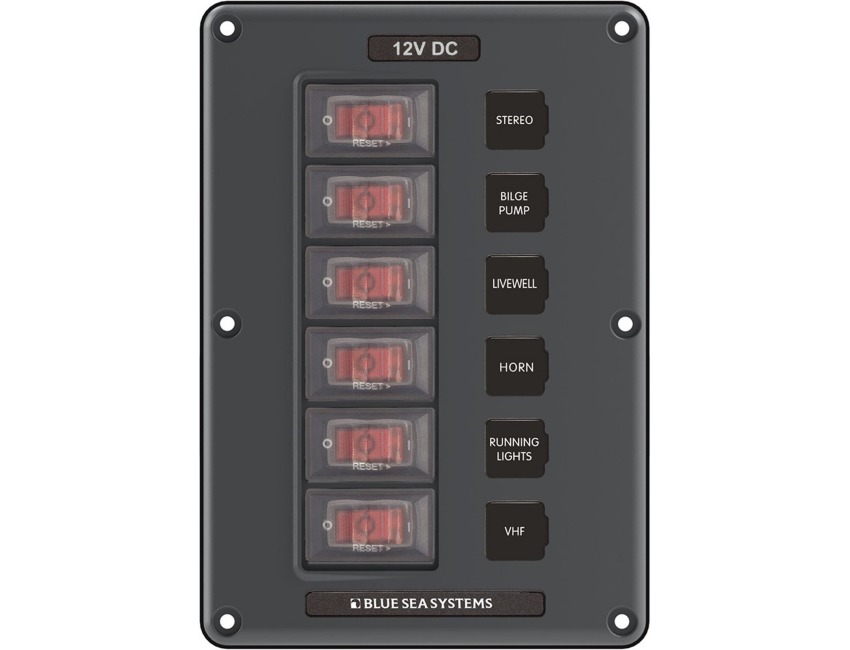

Circuit Breaker Switch Panel 6 Position

Gray with 12V

Part number: 4322

Designed for exposed mounting applications.

Features:

Illuminated 15A circuit breakers provide switching, “ON” indication and overcurrent protection

Industry-standard sizes and mounting allow these panels to be easily retroftted in an existing application

Polycarbonate/ABS panel surface is UV-stabilized, flame retardant, and will not corrode

Silicon breaker boots and gasket protects against water ingress

Low profle makes it easy to install in tight spaces

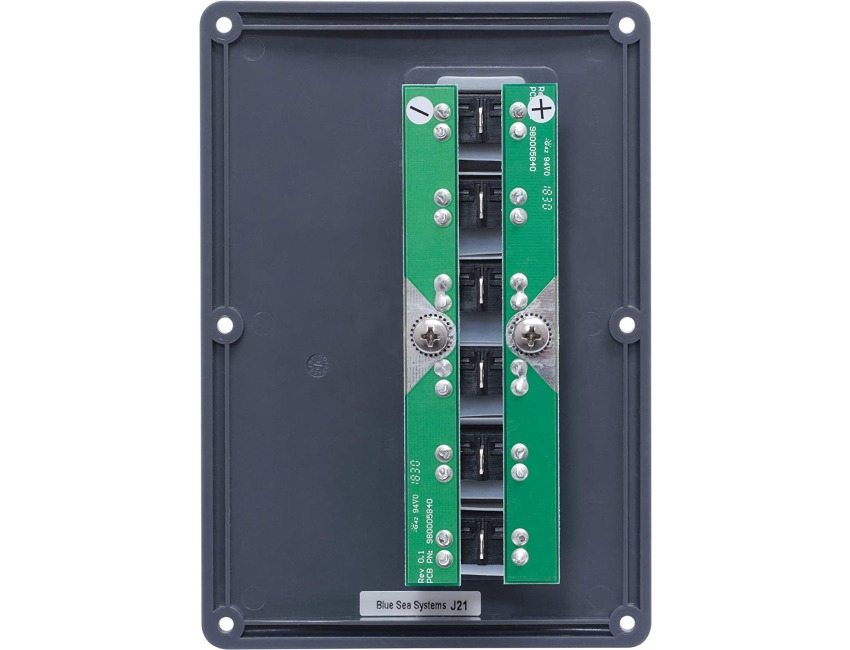

Fast-on circuit breaker connectors make it quick to wire

Two-wire connection for powering all panels is simple and requires #10 ring terminals

Terminals screw to bus bars for secure connections

Set of 15 square format circuit labels are included, and are easy to replace

Specifications:

Color: Gray

Positions: 6

Nominal Voltage: 12 VDC

Maximum Amperage: 45A

Terminal Type: 1/4" Male Quick Connect

Hardware: Stainless Steel #6 × 5/8" mounting screws

Ring Terminal Size: M5 (#10)

Specification List

Type Switch/breaker panel Sub-Type Waterproof type
Country/Region of Manufacture United States
