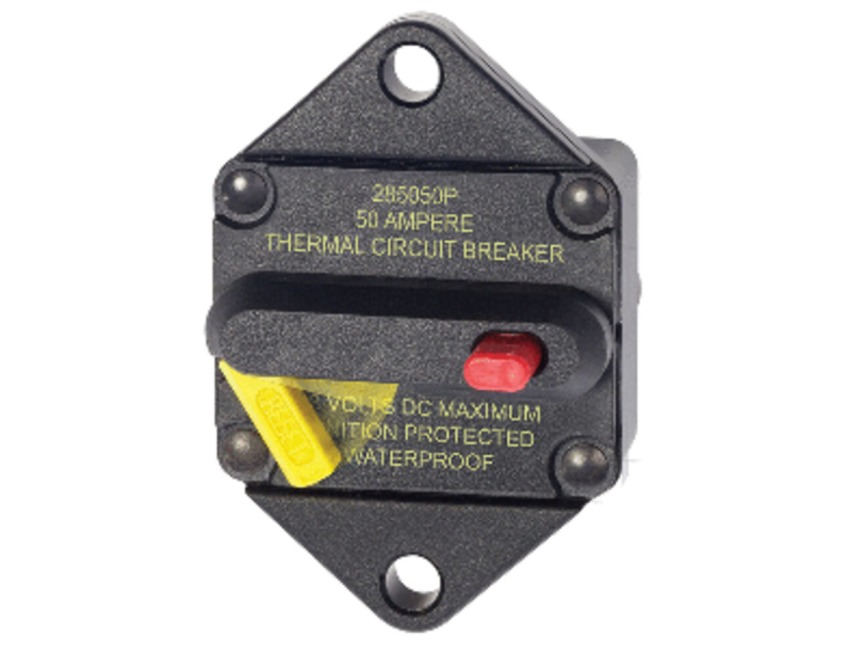

Blue Sea Systems - 50A Circuit Breaker - 285-Series - Panel Mount - 7083

Click to enlarge

Code165259045210

MPN 7083

£68.99

Delivery Information

Currently we only deliver to the UK (inc. Northern Ireland), Channel Islands, Norway, Australia, New Zealand, Canada and USA for online ordering - please contact us on sales@bottomlinemarine.com if you live elsewhere.

Free shipping on UK orders over £65 (£5.95 for UK orders under £65)
Excludes certain heavy items
All prices include UK VAT - No customs or duty fees for UK orders

Description

Blue Sea - 285-Series Circuit Breaker - Panel Mount 50A - 7085

Drop in replacement for 185-Series Circuit Breakers
Visible reset lever shows open condition
Ignition protected - Safe for installation aboard gasoline powered boats
Meets SAE J1171 external ignition protection requirements
Weather Resistant
Combines switching and circuit breaker function into one unit*
"Trip Free" - cannot be held closed after trip

Specifications
Amperage - 70A
Maximum Voltage - 48V DC
Mounting - Panel Mount
Circuit Breaker Type - Thermally responsive Bi-metal blade
Terminal Stud Torque - 50 in-lb (5.65 Nm)
Interrupt Capacity (The fault current that a device, normally a fuse or circuit breaker is capable of breaking without damage) - 3000A @ 48V Achieved using SAE J1625
Minimum Operating Temperature -40° C
Maximum Operating Temperature 85° C
Circuit Breaker Class - Type III - switchable/manual reset - trip free
Terminal Stud - M6 (accepts 1/4" Ring Terminal)
Weight - 0.50lb (0.23 kg)

Specification List

Type Circuit breaker EAN 632085170837
Sub-Type 50 amp
