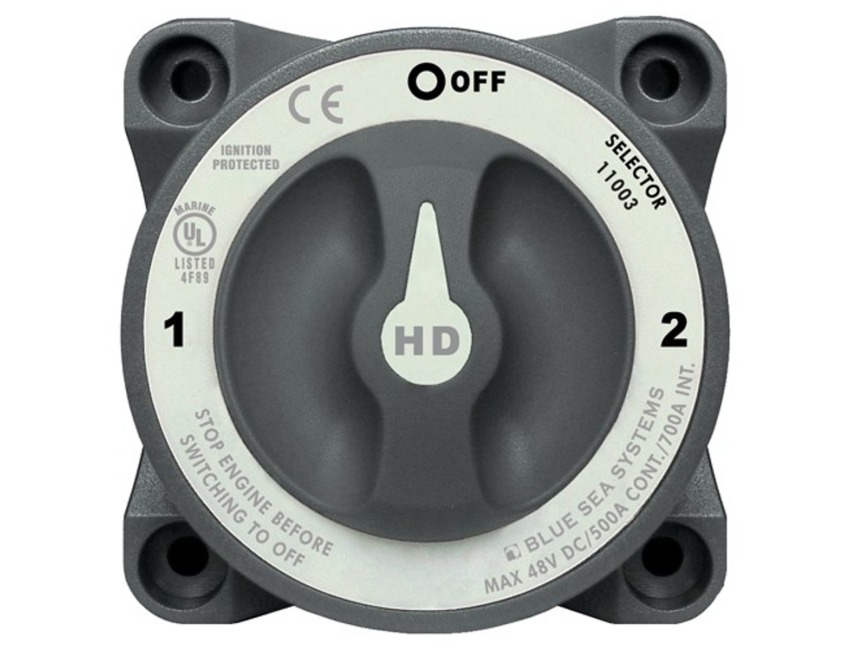

Blue Sea HD Battery Switch 3-Way AFD 500A - Grey - 11003
Click to enlarge
Code1
MPN 11003
Delivery Information
Currently we only deliver to the UK (inc. Northern Ireland), Channel Islands, Norway, Australia, New Zealand, Canada and USA for online ordering - please contact us on sales@bottomlinemarine.com if you live elsewhere.
Free shipping on UK orders over £75 (£5.95 for UK orders under £75)
Excludes certain heavy items
All prices include UK VAT - No customs or duty fees for UK orders
Description
HD BATTERY SWITCHES (Heavy Duty) Up to 500 Ampere continuous rating for large diesel engines.
AFD - Alternator Field Disconnect
Label with international legends
Tactile indicator conveys knob position by feel
Accepts up to 4/0 AWG (120mm2) battery cables
Case design allows surface or rear panel mounting
7/8" (22mm) stud length accepts multiple cable terminals
One-piece terminal stud design never loosens over time
M12 tin-plated copper studs for maximum conductivity & corrosion resistance, accepts 1/2" (M12) ring terminals
Regulatory
CE marked, ISO 8846
UL Listed - UL 1107 electric power switches
Meets ABYC requirements
Meets UL1500 and SAE J1171 external ignition protection requirements
IP66 protects against powerful water jets
Specification List
| Type | Battery switch | Sub-Type | 3 way |
|---|
