Blue Sea Common Mini Bus 5x 8-32" with Cover (100A) - 2314
Click to enlarge
Code155241308204
MPN 2314
Delivery Information
Currently we only deliver to the UK (inc. Northern Ireland), Channel Islands, Norway, Australia, New Zealand, Canada and USA for online ordering - please contact us on sales@bottomlinemarine.com if you live elsewhere.
Free shipping on UK orders over £75 (£5.95 for UK orders under £75)
Excludes certain heavy items
All prices include UK VAT - No customs or duty fees for UK orders
Description

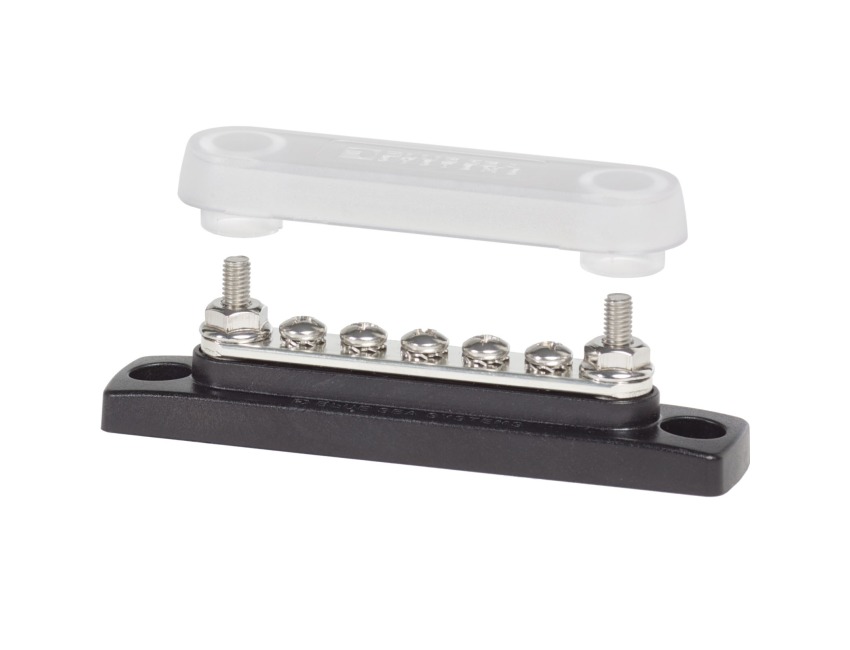

Blue Sea Systems Mini Bus Bar 100A
PN 2314
PRODUCT FEATURES:
Provides convenient busing for limited space applications.
PRODUCT SPECIFICATIONS:
Connections: Terminals: #10-32 Stud, #8-32 Screws
Material: Bus: Tin-Plated Copper (CDA 110 / UNS 11000), Base: Glass Reinforced Thermoplastics (UL 94-V0 Rated), Cover: Clear Polycarbonate
Base Colour: Black
Voltage: 300V AC / 48V DC maximum
Amps: Continuous: 100A
Approvals: CE

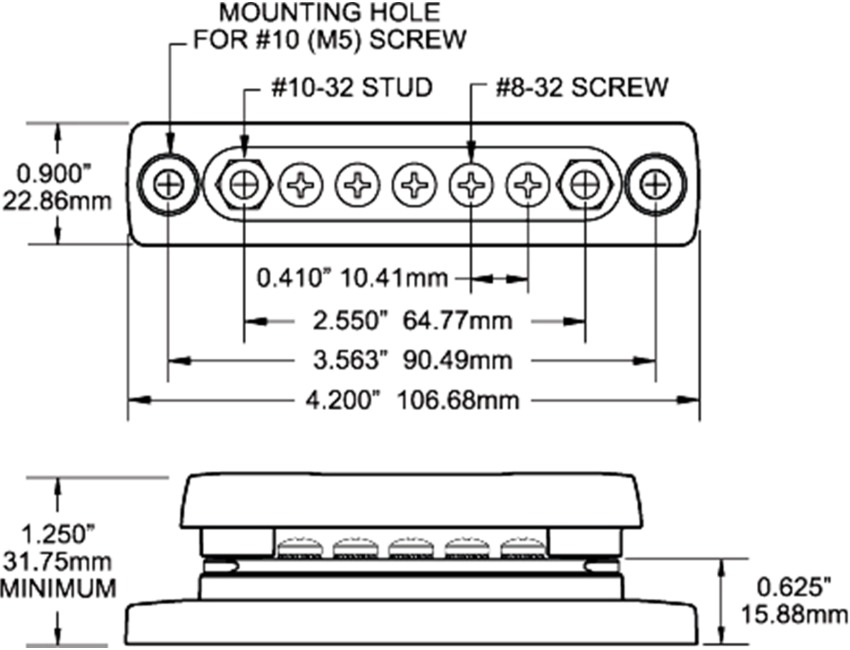

Dimensions:
Distance Between Mounting Hole Centres: 90.49mm (3.6"), Mounting Hole: #10 (M5)
Width: 22.86mm (0.9")
Length: 106.68mm (4.2")
Specification List
| Type | Mini Bus Bar | Sub-Type | Bus Bar |
|---|---|---|---|
| Country/Region of Manufacture | United States |
