Blue Sea Common Bus 10x 8-32" with Cover (150A) - 2300

Click to enlarge

Code185646242296

MPN 2300

£27.97

Delivery Information

Currently we only deliver to the UK (inc. Northern Ireland), Channel Islands, Norway, Australia, New Zealand, Canada and USA for online ordering - please contact us on sales@bottomlinemarine.com if you live elsewhere.

Free shipping on UK orders over £75 (£5.95 for UK orders under £75)
Excludes certain heavy items
All prices include UK VAT - No customs or duty fees for UK orders

Description

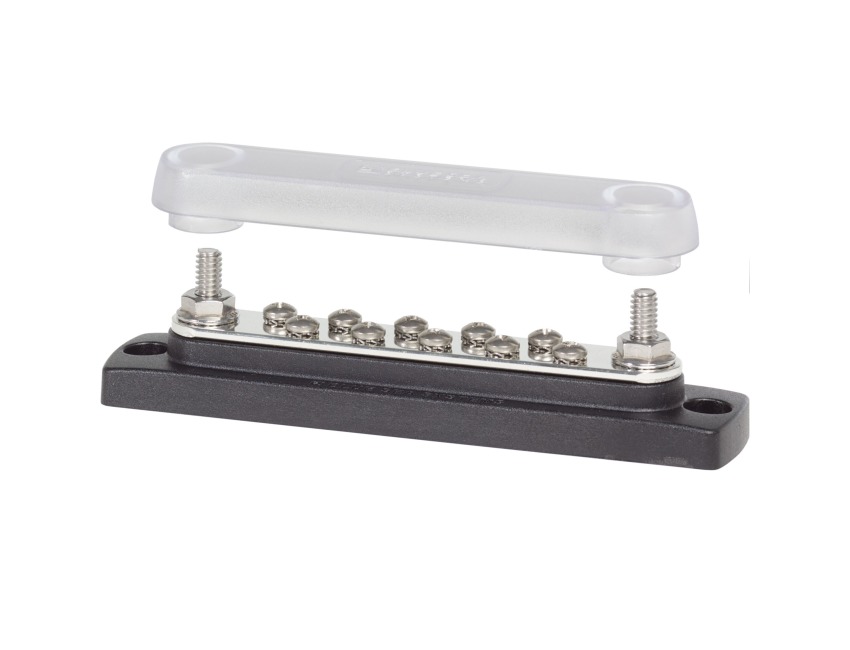

Blue Sea Systems Bus Bar 150A

PN 2300

PRODUCT FEATURES:
The industry standard busbar for positive distribution

PRODUCT SPECIFICATIONS:

Connections: Terminals: #10-32 Stud, #8-32 Screws

Material: Bus: Tin-Plated Copper (CDA 110 / UNS 11000), Base: Glass Reinforced Thermoplastics (UL 94-V0 Rated), Cover: Clear Polycarbonate

Base Colour: Black

Voltage: 300V AC / 48V DC maximum

Amps: Continuous: 150A

Approvals: CE

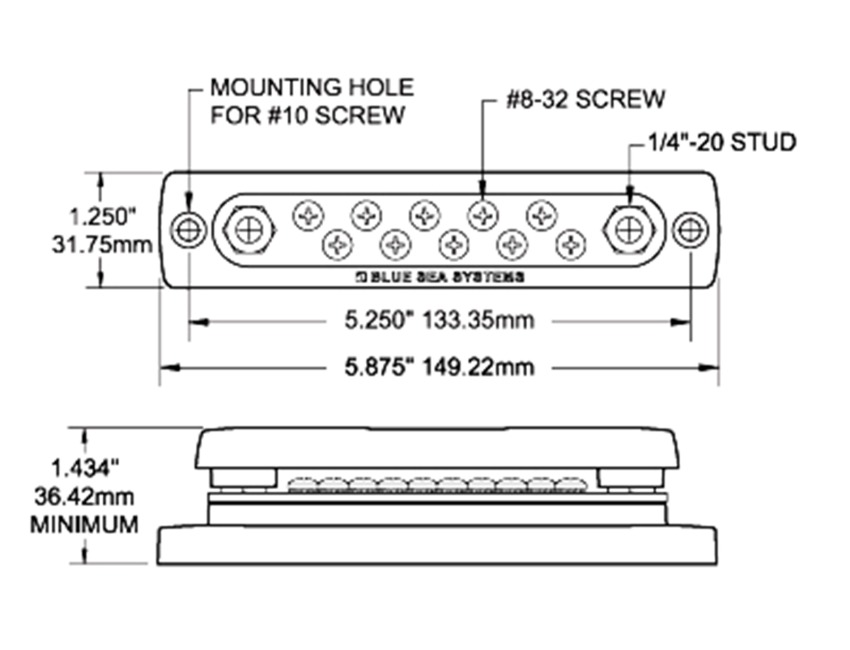

Dimensions:

Distance Between Mounting Hole Centres: 133.35mm (5.25"), Mounting Hole: #10 (M5)

Width: 31.75mm (1.25")

Length: 149.22mm (5.875")

Specification List

Type Bus Bar Country/Region of Manufacture United States
