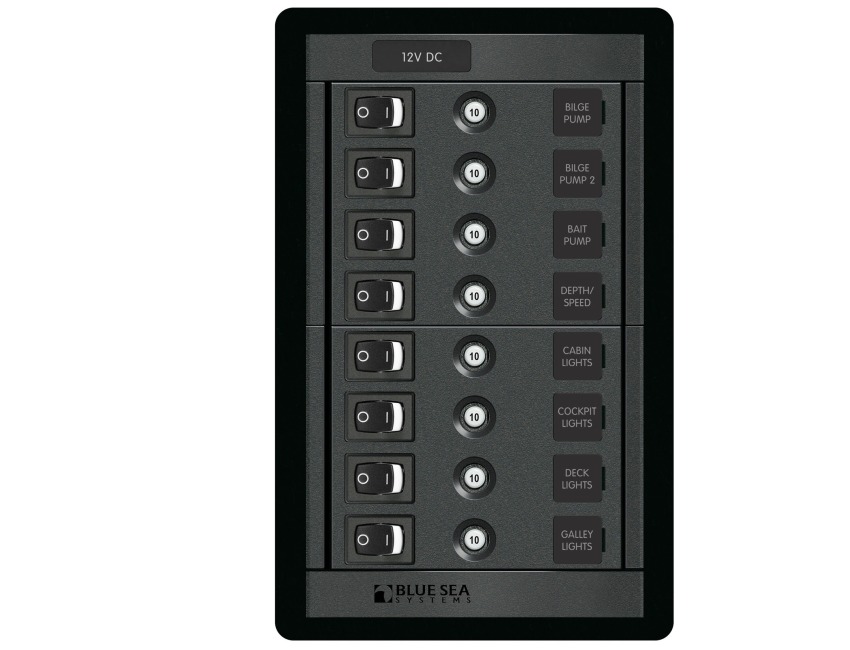

Blue Sea 360 - 8 Position Circuit breaker switch panel - 12V - MPN 1457

Click to enlarge

Code184863551129

MPN 1457

£261.36

Delivery Information

Currently we only deliver to the UK (inc. Northern Ireland), Channel Islands, Norway, Australia, New Zealand, Canada and USA for online ordering - please contact us on sales@bottomlinemarine.com if you live elsewhere.

Free shipping on UK orders over £75 (£5.95 for UK orders under £75)
Excludes certain heavy items
All prices include UK VAT - No customs or duty fees for UK orders

Description

Blue Sea Systems
360 8 Position Switch CLB Vertical

PN 1457
Provides circuit protection and switching in a compact and economical panel Includes Basic DC Label Kit - 30 Black Square Labels Push Button Reset Quick Connect Circuit Breakers - 10 Amps
(5A / 15A / 20A / 30A / 40A breakers available separately) For use below deck, not waterproof.

Specifications

Positions 8

Nominal Voltage 12V DC

Maximum Amperage Maximum amperage rating - 80A

(dependent on use of appropriately sized fuses and wire for a given application)

Height 7.75in (196.85 mm)

Width 4.88in (123.95 mm)

Depth 3.50in (88.9 mm)

Weight 1.69lb (0.77 kg)

Specification List

Type Switch/breaker panel Sub-Type Circuit breaker type
Country/Region of Manufacture United States
