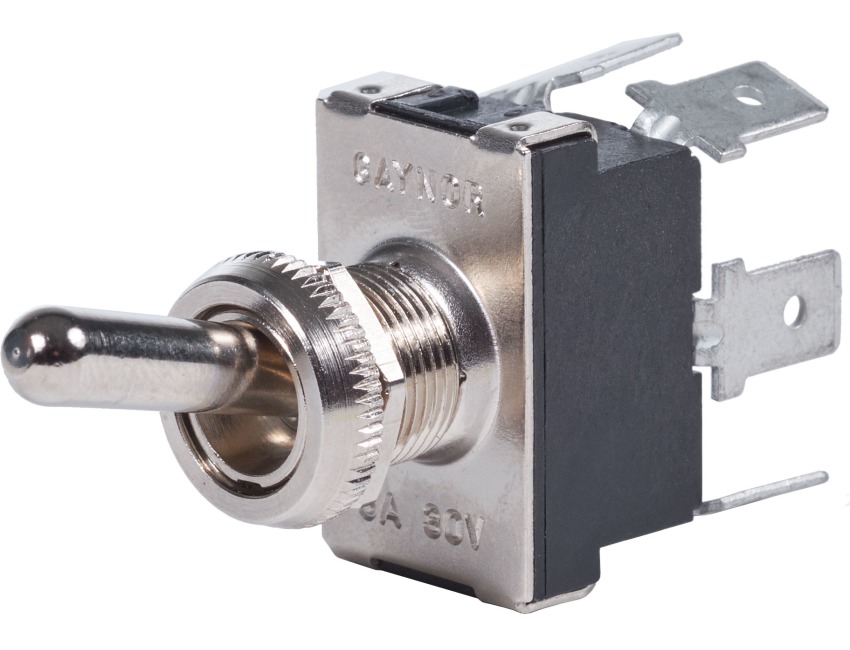

Blue Sea - WeatherDeck® Toggle Switch DPDT - ON-OFF-ON - PN. 4155

Click to enlarge

MPN 4155

£19.94

Delivery Information

Currently we only deliver to the UK (inc. Northern Ireland), Channel Islands, Norway, Australia, New Zealand, Canada and USA for online ordering - please contact us on sales@bottomlinemarine.com if you live elsewhere.

Free shipping on UK orders over £75 (£5.95 for UK orders under £75)
Excludes certain heavy items
All prices include UK VAT - No customs or duty fees for UK orders

Description

Blue Sea WeatherDeck® Toggle Switch DPDT - ON-OFF-ON

Part No. 4155

Specially manufactured by Carling Technologies for use in Blue Sea Systems' WeatherDeck® Panels
When mounted with a WeatherDeck® Toggle Switch Boot Rated IP67-temporary immersion for 30 minutes
Nickel-plated brass and phenolic non-corrosive construction

Specifications:
Action - ON-OFF-ON
Pole / Throw - DPDT
Poles - 2
Common Applications - combining nav lights with anchor light with shared bulb
Maximum Amperage - 5A
Maximum Voltage - 30V DC
Terminal Type - Quick Connect Tab
Number of Terminals - 6
Terminal Size - 0.25in (6.35 mm)
Weight - 0.10lb (0.05 kg)

Specification List

Weight 0.10lb (0.05 kg) Country of Origin USA
Tariff Code 85371000 Type Switches
Sub-Type Toggle Switch
