Blue Sea - WeatherDeck® 12V DC Waterproof Switch Panel - 8 Position - PN. 4309

Click to enlarge

MPN 4309

Delivery Information

Currently we only deliver to the UK (inc. Northern Ireland), Channel Islands, Norway, Australia, New Zealand, Canada and USA for online ordering - please contact us on sales@bottomlinemarine.com if you live elsewhere.

Free shipping on UK orders over £75 (£5.95 for UK orders under £75)
Excludes certain heavy items
All prices include UK VAT - No customs or duty fees for UK orders

Description
Specification

Description

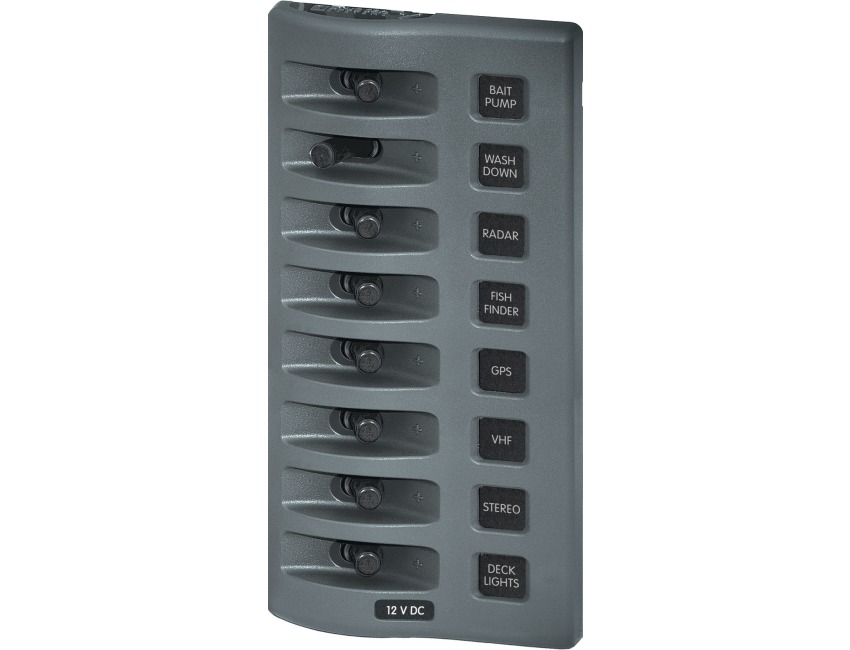

Blue Sea WeatherDeck® 12V DC Waterproof Switch Panel - 8 Position

Part No. 4309

Many switch panels mounted on the dash or flybridge do not stand up to harsh marine environment. WeatherDeck® Switch Panels are waterproof and rated IP67 (for temporary immersion in water) and use materials that won't deteriorate in the harsh sun, salt, and water. Many small boats, which already have circuit protection and do not run at night, simply need a switch panel which is waterproof. The WeatherDeck® Switch Panel has all the rugged features of the proven WeatherDeck® Panel family however does not have the added cost of backlighting and circuit protection.

Integrated switch guards reduce the risk of accidental switching
Panels can be mounted in four different orientations
Panel front rated IP67 when properly mounted with watertight mounting gasket
IP67 – protected against immersion up to 1 meter for 30 minutes
UV stabilized weather-resistant faceplate snaps on and off providing access to components and concealing mouting screws

Specifications:
Weatherproof - Waterproof
Positions - 8
Nominal Voltage - 12V DC / 24V DC
Circuit Protection - None
Maximum Amperage - 15A @ 12V DC (per circuit)
Panel Cumulative Rating - 45A
Material - Reinforced Polycarbonate
Height - 7.70in (195.58 mm)
Width - 3.88in (98.55 mm)
Depth - 2.50in (63.5 mm)
Weight - 1.55lb (0.7 kg)

Specification List

Sub-Type	Water-Resistant	Weight	1.55lb (0.7 kg)
Country of Origin	USA	Type	DC Panels
