Blue Sea - WeatherDeck® 12V DC Waterproof Fuse Panel - Gray 4 Positions - PN. 4304

Click to enlarge

MPN 4304

£98.31

Delivery Information

Currently we only deliver to the UK (inc. Northern Ireland), Channel Islands, Norway, Australia, New Zealand, Canada and USA for online ordering - please contact us on sales@bottomlinemarine.com if you live elsewhere.

Free shipping on UK orders over £75 (£5.95 for UK orders under £75)
Excludes certain heavy items
All prices include UK VAT - No customs or duty fees for UK orders

Description

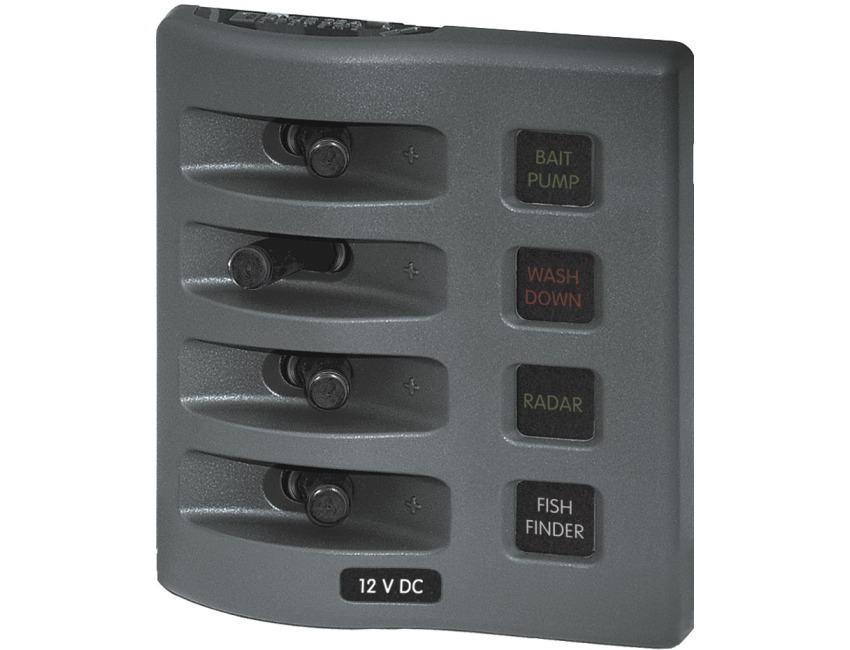

Blue Sea WeatherDeck® 12V DC Waterproof Fuse Panel - Gray 4 Positions

Part No. 4304

Panel front rated IP67 when properly mounted with watertight mounting gasket
IP67 – protected against immersion up to 1 meter for 30 minutes
Designed for flybridge and open cockpit applications
Independent label backlighting circuit for remote switching and dimming
Available in 2, 4, 6, and 8 circuit models
Each panel can be mounted in four different orientations
Integrated ATO/ATC fuse based circuit protection
Bicolored LEDs illuminate circuit labels to quickly identify OFF (Red), ON (Green), or Blown (No Color) circuits. No lights in any position likely indicate there is no power to the panel.

Specifications:
Weatherproof - Waterproof
Positions - 4
Nominal Voltage - 12V DC
Circuit Protection - Fuse
Maximum Amperage - 15A @ 12V DC (per circuit)
Panel Cumulative Rating - 60A
Backlit Label - Bicolored LED
Backlighting Amperage - 10mA /Illuminated Circuit
Backlighting Voltage - 12V DC
Material - Reinforced Polycarbonate
Height - 4.30in (109.22 mm)
Width - 3.88in (98.55 mm)
Depth - 2.50in (63.5 mm)
Weight - 0.90lb (0.41 kg)

Specification List

Sub-Type Water-Resistant Weight 0.90lb (0.41 kg)
Country of Origin USA Type DC Panels

Description 4

LOC: Office display
Qty: 01
