Blue Sea - Traditional Metal DC Panel - 24 Positions - PN. 8264

Click to enlarge

MPN 8264

£769.45

Delivery Information

Currently we only deliver to the UK (inc. Northern Ireland), Channel Islands, Norway, Australia, New Zealand, Canada and USA for online ordering - please contact us on sales@bottomlinemarine.com if you live elsewhere.

Free shipping on UK orders over £75 (£5.95 for UK orders under £75)
Excludes certain heavy items
All prices include UK VAT - No customs or duty fees for UK orders

Description

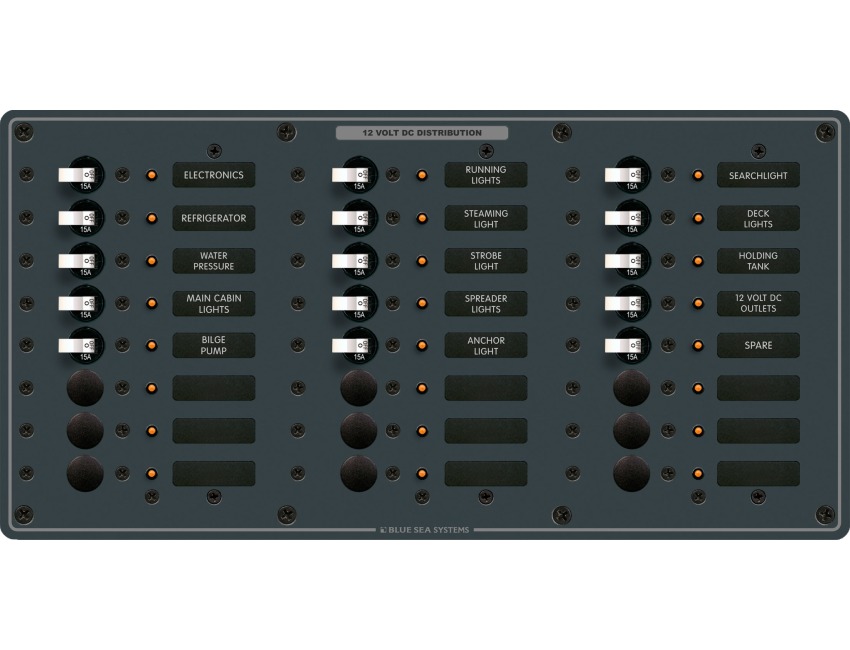

Blue Sea Traditional Metal DC Panel - 24 Positions (15 pre-populated)

Part No. 8264

All positive, negative and grounding buses installed, fully pre-wired
Panels with meters include toggle switch for mounting up to 3 battery banks
All panels with analog meters are owner upgradable to 24 Volts with 8240 or 8243 (18-32V DC meters)
All circuit label positions are backlit on standard panels - No kit required
"ON" indicating LEDs installed in all circuit positions

Specifications:
Positions - 24
Nominal Voltage - 12V DC / 24V DC
Maximum Amperage - 100A per bus
Height - 7.50in (190.5 mm)
Width - 14.75in (374.65 mm)
Weight - 7.45lb (3.38 kg)

Specification List

Weight 7.45lb (3.38 kg) Country of Origin USA
Tariff Code 85371000 Type DC Panels
Sub-Type Below-deck
