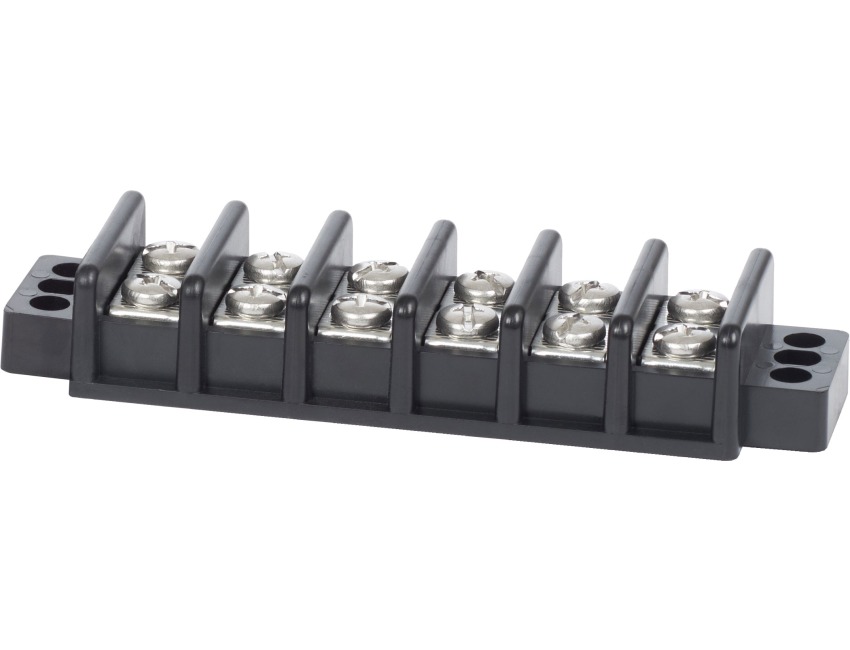

Blue Sea - Terminal Block 30A - 6 Circuit - PN. 2506

Click to enlarge

MPN 2506

Delivery Information

Currently we only deliver to the UK (inc. Northern Ireland), Channel Islands, Norway, Australia, New Zealand, Canada and USA for online ordering - please contact us on sales@bottomlinemarine.com if you live elsewhere.

Free shipping on UK orders over £75 (£5.95 for UK orders under £75)
Excludes certain heavy items
All prices include UK VAT - No customs or duty fees for UK orders

Description
Specification

Description

Blue Sea Terminal Block 30A - 6 Circuit

Part No. 2506

Closed back design completely insulates power from the mounting surface
Each screw pair is one isolated circuit
Jumpers allow creation of common circuits

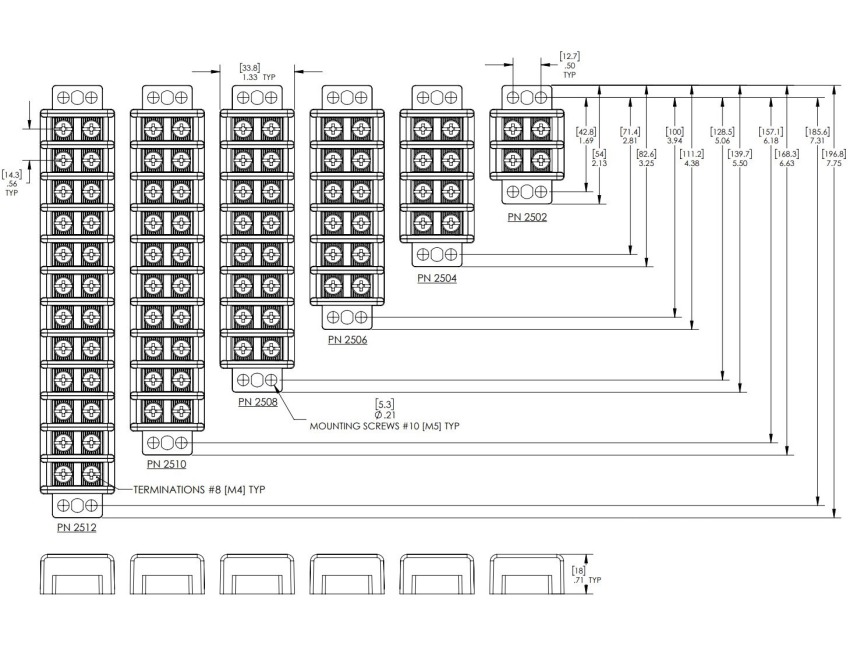

Specifications:
Circuits - 6
Length - 4.38in (111.25 mm)
Maximum Voltage - 600V AC/DC
Continuous Rating - 30A
Base Material - UL 94 V0 - PC
Bus Material - Nickel-Plated Brass
Mounting Screw - #10 [M5]
Screw Material - Stainless Steel
Screw Terminal Torque - 10 in-lb (1.13 Nm)
Terminal Screws - M4
Wire Terminal Size - #8 [M4]
Weight - 0.21lb (0.1 kg)

Specification List

Sub-Type	-	Weight	0.21lb (0.1 kg)
Country of Origin	USA	Tariff Code	85369090
Type	Terminal Blocks
