Blue Sea - Terminal Block 20A - 6 Circuit - PN. 2406

Click to enlarge

MPN 2406

Delivery Information

Currently we only deliver to the UK (inc. Northern Ireland), Channel Islands, Norway, Australia, New Zealand, Canada and USA for online ordering - please contact us on sales@bottomlinemarine.com if you live elsewhere.

Free shipping on UK orders over £75 (£5.95 for UK orders under £75)
Excludes certain heavy items
All prices include UK VAT - No customs or duty fees for UK orders

Description
Specification

Description

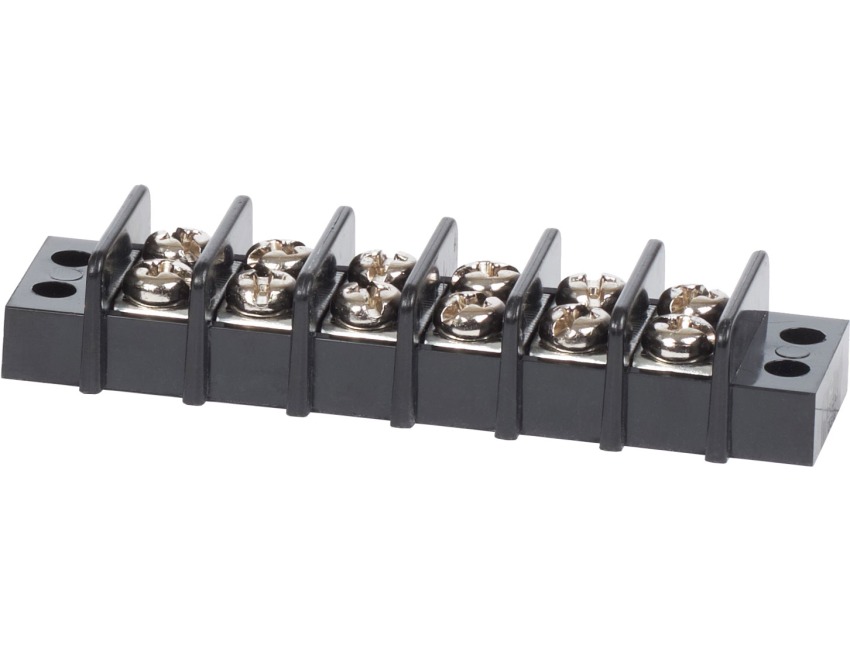

Blue Sea Terminal Block 20A - 6 Circuit

Part No. 2406

Closed back design completely insulates power from the mounting surface
Each screw pair is one isolated circuit
Jumpers allow creation of common circuits

Specifications:
Circuits - 6
Length - 2.91in (73.91 mm)
Maximum Voltage - 300V AC/DC
Continuous Rating - 20A
Base Material - UL 94 V0 - PC
Bus Material - Nickel-Plated Brass
Mounting Screw - #6 [M3.5]
Screw Material - Stainless Steel
Screw Terminal Torque - 7 in-lb (0.79 Nm)
Terminal Screws - M3.5
Wire Terminal Size - #6 [M3]
Weight - 0.08lb (0.04 kg)

Specification List

Sub-Type	-	Weight	0.08lb (0.04 kg)
Country of Origin	USA	Tariff Code	85369090
Type	Terminal Blocks
