Blue Sea - Terminal Block 20A - 4 Circuit - PN. 2404
Click to enlarge
MPN 2404
Delivery Information
Currently we only deliver to the UK (inc. Northern Ireland), Channel Islands, Norway, Australia, New Zealand, Canada and USA for online ordering - please contact us on sales@bottomlinemarine.com if you live elsewhere.
Free shipping on UK orders over £75 (£5.95 for UK orders under £75)
Excludes certain heavy items
All prices include UK VAT - No customs or duty fees for UK orders
Description

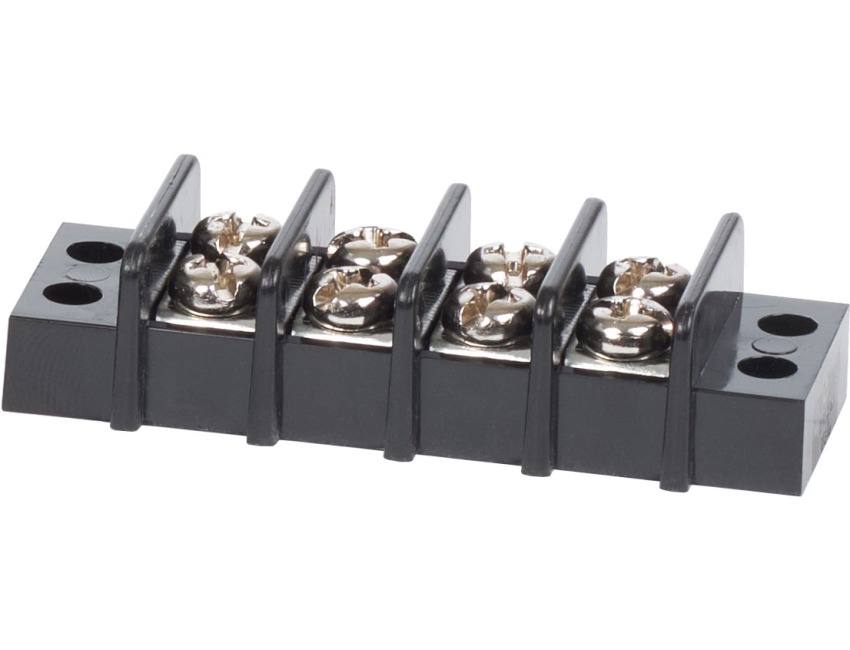

Blue Sea Terminal Block 20A - 4 Circuit
Part No. 2404Closed back design completely insulates power from the mounting surface
Each screw pair is one isolated circuit
Jumpers allow creation of common circuits
Specifications:
Circuits - 4
Length - 2.17in (55.12 mm)
Maximum Voltage - 300V AC/DC
Continuous Rating - 20A
Base Material - UL 94 V0 - PC
Bus Material - Nickel-Plated Brass
Mounting Screw - #6 [M3.5]
Screw Material - Stainless Steel
Screw Terminal Torque - 7 in-lb (0.79 Nm)
Terminal Screws - M3.5
Wire Terminal Size - #6 [M3]
Weight - 0.06lb (0.03 kg)
Specification List
| Sub-Type | - | Weight | 0.06lb (0.03 kg)0.07lb (0.03 kg) |
|---|---|---|---|
| Country of Origin | USA | Tariff Code | 85369090 |
| Type | Terminal Blocks |
