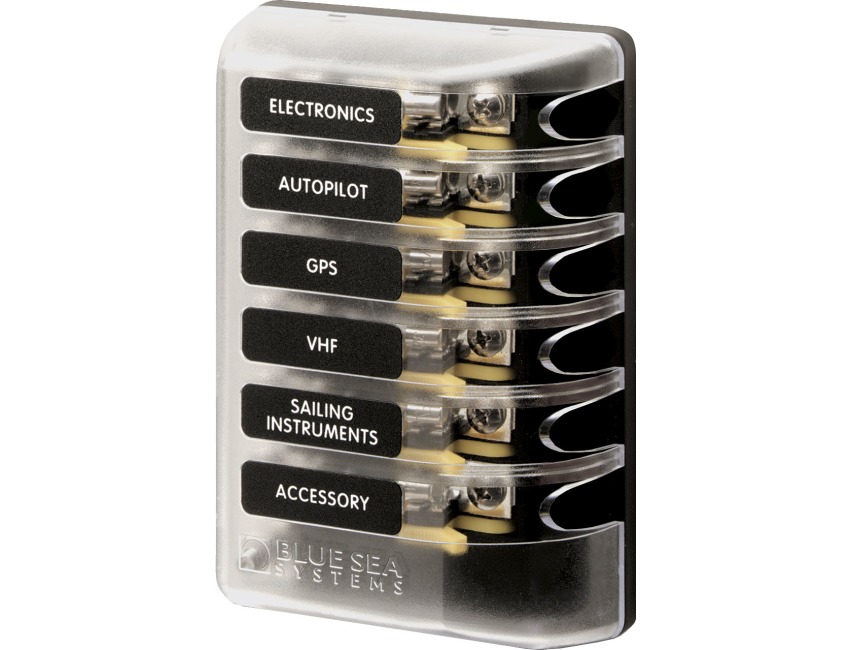

Blue Sea - ST Glass 6 Circuit Fuse Block with Cover - PN. 5018

Click to enlarge

Code1

MPN 5018

Delivery Information

Currently we only deliver to the UK (inc. Northern Ireland), Channel Islands, Norway, Australia, New Zealand, Canada and USA for online ordering - please contact us on sales@bottomlinemarine.com if you live elsewhere.

Free shipping on UK orders over £75 (£5.95 for UK orders under £75)
Excludes certain heavy items
All prices include UK VAT - No customs or duty fees for UK orders

Description
Specification

Description

Blue Sea ST Glass 6 Circuit Fuse Block with Cover (Fuses not included)

Part No. 5018

Innovative design allows for labeling, spare fuse storage, and easy fuse removal
Clear insulating cover with label recesses for accept Large Format Labels
Cover insulates all conductive parts, satisfying ABYC/USCG requirements and storing spare fuses
Tin-plated copper buses and Phosphor Bronze fuse clips give 30 Ampere rating per circuit
Accepts AGC (Fast Acting), MDL (Time-Delay) and all other 3AG Glass Fuses

Specifications:
Maximum Amperage - 100A per block30A per circuit
Maximum Voltage - 32V DC
Mounting - #10 Screw
Base Material - Reinforced Polycarbonate
Cover Material - Polycarbonate
Screw Terminal Type - #8-32 with Captive Star Lockwasher
Weight - 0.48lb (0.22 kg)
Weight - 0.48lb (0.22 kg)

Specification List

Type	Fuse Blocks	Sub-Type	-
Weight	0.48lb (0.22 kg)0.48lb (0.22 kg)	Country of Origin	USA
Tariff Code	85389099
