Blue Sea - ST Blade Split Bus Fuse Block - PN. 5032
Click to enlarge
MPN 5032
Delivery Information
Currently we only deliver to the UK (inc. Northern Ireland), Channel Islands, Norway, Australia, New Zealand, Canada and USA for online ordering - please contact us on sales@bottomlinemarine.com if you live elsewhere.
Free shipping on UK orders over £75 (£5.95 for UK orders under £75)
Excludes certain heavy items
All prices include UK VAT - No customs or duty fees for UK orders
Description

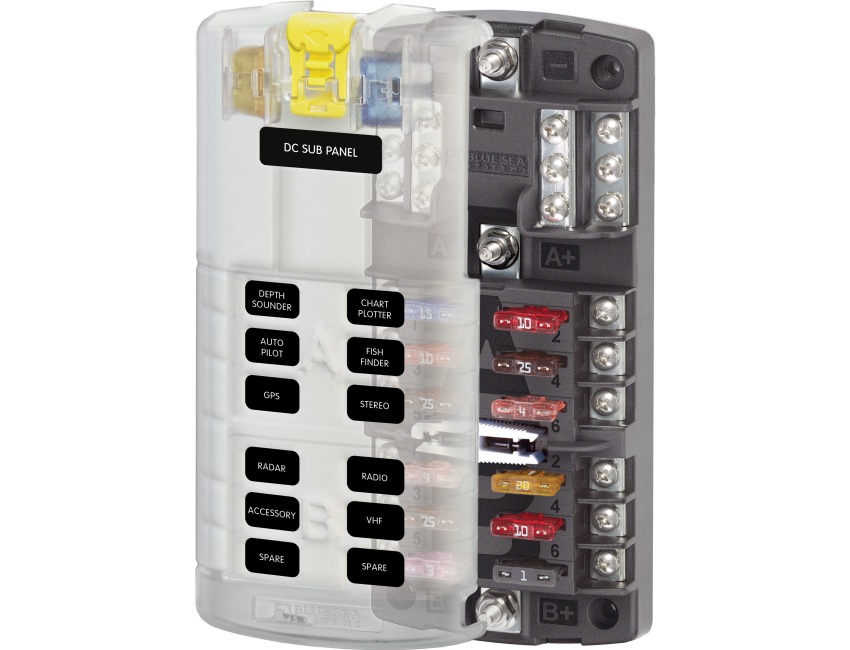

Blue Sea ST Blade Split Bus Fuse Block (Fuses not included)
Part No. 5032Split Bus Fuse Block with ground for use when a mix of switched and 24-hour circuits are desired in the same block
Provides two isolated groups of six ATO®/ATC® circuits
For use with either two isolated batteries or with a single battery providing a mix of 24 hour and switched circuits
Screw terminals for securing wires accept ring terminals
One-piece stainless flange nuts ensure safe and secure connections
Clear insulating cover with label recesses and storage for two fuses, satisfies ABYC/USCG insulation requirements
Easy to open, push button latch for easy access to fuses
Tin-plated copper buses and fuse clips
Fuses sold separately
Specifications:
Circuits - 12
Maximum Amperage - 30A per circuit100A total
Maximum Voltage - 32V DC
Mounting - #8 Screw (M4)
Negative Bus - #10-32 Stud
Positive Bus - #10-32 Stud
Recommended Torque - 24 in-lb (2.71 N·m)
Screw Terminal Torque - 18 in-lb (2.03 Nm)
Screw Terminal Type - #8-32 Screws with captive star lock washer
Weight - 0.75lb (0.34 kg)
Specification List
| Type | Fuse Blocks | Sub-Type | - |
|---|---|---|---|
| Weight | 0.75lb (0.34 kg) | Country of Origin | USA |
| Tariff Code | 85389099 |
