Blue Sea - ST Blade Fuse Block - 6 Independent Circuits with Cover - PN. 5035

Click to enlarge

MPN 5035

Delivery Information

Currently we only deliver to the UK (inc. Northern Ireland), Channel Islands, Norway, Australia, New Zealand, Canada and USA for online ordering - please contact us on sales@bottomlinemarine.com if you live elsewhere.

Free shipping on UK orders over £75 (£5.95 for UK orders under £75)
Excludes certain heavy items
All prices include UK VAT - No customs or duty fees for UK orders

Description
Specification

Description

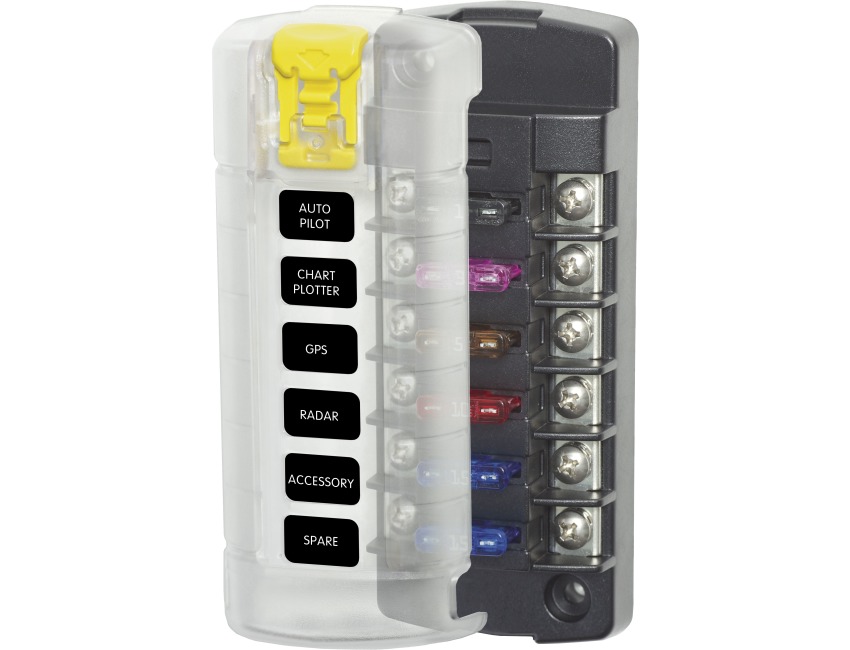

Blue Sea ST Blade Fuse Block - 6 Independent Circuits with Cover (Fuses not included)

Part No. 5035

Corrosion resistant, tin-plated copper fuse clips reduce heat and improve the efficiency of the electrical system
Clear insulating cover with label recesses accepts Small Format Labels
Spare fuse holder in cover
Accepts ring or snap fork type terminals
Includes two terminal block jumpers

Specifications:
Circuits - 6
Maximum Amperage - 30A per circuit40A per jumped circuit group
Maximum Voltage - 32V DC
Mounting - #8 Screw (M4)
Screw Terminal Torque - 18 in-lb (2.03 Nm)
Screw Terminal Type - #8-32 with Captive Star Lockwasher
Weight - 0.35lb (0.16 kg)

Specification List

Type	Fuse Blocks	Sub-Type	-
Weight	0.35lb (0.16 kg)	Country of Origin	USA
Tariff Code	85389099
