Blue Sea - ST Blade Fuse Block - 6 Independent Circuits - PN. 5037
Click to enlarge
MPN 5037
Delivery Information
Currently we only deliver to the UK (inc. Northern Ireland), Channel Islands, Norway, Australia, New Zealand, Canada and USA for online ordering - please contact us on sales@bottomlinemarine.com if you live elsewhere.
Free shipping on UK orders over £75 (£5.95 for UK orders under £75)
Excludes certain heavy items
All prices include UK VAT - No customs or duty fees for UK orders
Description

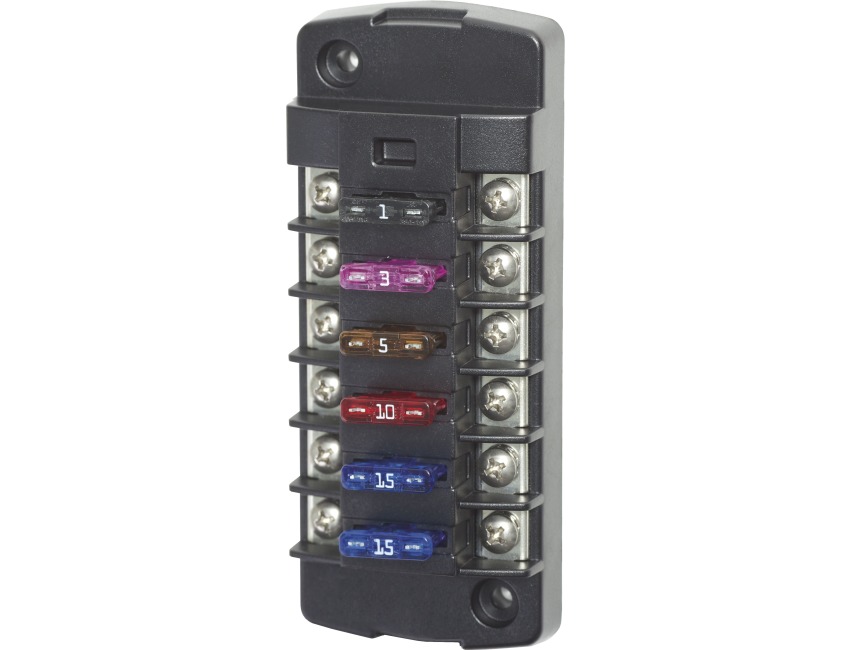

Blue Sea ST Blade Fuse Block - 6 Independent Circuits (Fuses not included)
Part No. 5037Corrosion resistant, tin-plated copper fuse clips reduce heat and improve the efficiency of the electrical system
Accepts ring or snap fork type terminals
Includes two terminal block jumpers
Specifications:
Circuits - 6
Maximum Amperage - 30A per circuit40A per jumped circuit group
Maximum Voltage - 32V DC
Mounting - #8 Screw (M4)
Screw Terminal Torque - 18 in-lb (2.03 Nm)
Screw Terminal Type - #8-32 with Captive Star Lockwasher
Weight - 0.35lb (0.16 kg)
Specification List
| Type | Fuse Blocks | Sub-Type | - |
|---|---|---|---|
| Weight | 0.35lb (0.16 kg) | Country of Origin | USA |
| Tariff Code | 85389099 |
