Blue Sea - ST Blade Compact Fuse Blocks - 8 Circuits - PN. 5046
Click to enlarge
MPN 5046
Delivery Information
Currently we only deliver to the UK (inc. Northern Ireland), Channel Islands, Norway, Australia, New Zealand, Canada and USA for online ordering - please contact us on sales@bottomlinemarine.com if you live elsewhere.
Free shipping on UK orders over £75 (£5.95 for UK orders under £75)
Excludes certain heavy items
All prices include UK VAT - No customs or duty fees for UK orders
Description

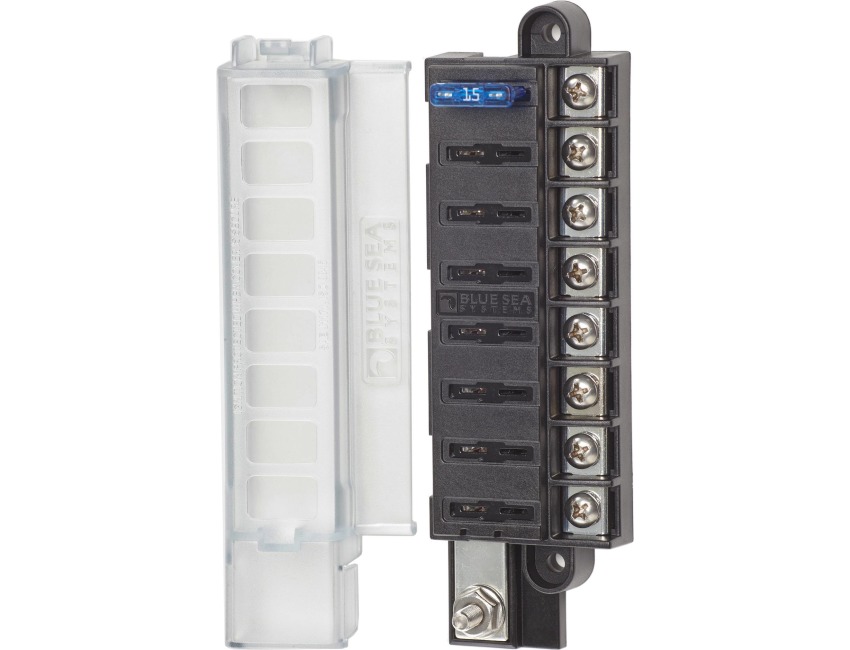

Blue Sea ST Blade Compact Fuse Blocks - 8 Circuits (Fuses not included)
Part No. 5046Provides surface mount circuit protection for ATO®/ATC® Fuses in a compact footprint.
Ignition protected when cover is secure –meets ISO 8846 and SAE J1171 for use in a gasoline engine compartment
Single side design allows wire entry from one side to minimize footprint
Insulating cover meets ABYC/USCG insulation requirements
Tin-plated copper buses and fuse clips
Accepts ring or snap fork type terminals
Includes 8 write-on circuit labels
Fuses sold separately
Specifications:
Circuits - 8
Maximum Amperage - 100A per block30A per circuit
Maximum Voltage - 32V DC
Mounting - #8 Screw (M4)
Terminal Stud Torque - 24 in-lb (2.71 Nm)
Screw Terminal Torque - 18 in-lb (2.03 Nm)
Screw Terminal Type - #8-32 Scews with captive star lock washer
Terminal Stud Size - #10-32
Weight - 0.40lb (0.18 kg)
Specification List
| Type | Fuse Blocks | Sub-Type | - |
|---|---|---|---|
| Weight | 0.40lb (0.18 kg) | Country of Origin | USA |
| Tariff Code | 85389099 |
