Blue Sea - ST Blade Battery Terminal Mount Fuse Block - PN. 5023
Click to enlarge
MPN 5023
Delivery Information
Currently we only deliver to the UK (inc. Northern Ireland), Channel Islands, Norway, Australia, New Zealand, Canada and USA for online ordering - please contact us on sales@bottomlinemarine.com if you live elsewhere.
Free shipping on UK orders over £75 (£5.95 for UK orders under £75)
Excludes certain heavy items
All prices include UK VAT - No customs or duty fees for UK orders
Description

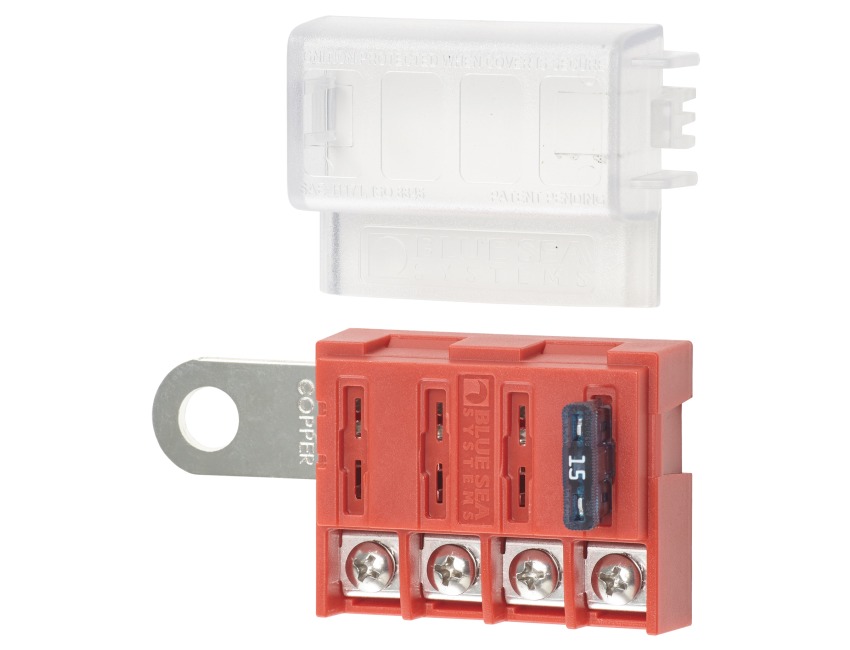

Blue Sea ST Blade Battery Terminal Mount Fuse Block (Fuses not included)
Part No. 5023Easy to install 4 ATO®/ATC® fused circuits
Mounts on the battery terminal stud
Screw terminals for securing wires
Four Nylon insulated ring terminals included
Insulating cover included
Accepts Small Format Circuit Labels
Includes 1 fuse
Specifications:
Circuits - 4
Maximum Amperage - 100A per block30A per circuit
Maximum Voltage - 32V DC
Mounting - Clearance for 3/8" [M10] stud
Screw Terminal Torque - 18 in-lb (2.03 Nm)
Screw Terminal Type - #8-32 Screws with captive star lock washer
Weight - 0.25lb (0.11 kg)
Specification List
| Type | Fuse Blocks | Sub-Type | - |
|---|---|---|---|
| Weight | 0.25lb (0.11 kg) | Country of Origin | USA |
| Tariff Code | 85389099 |
