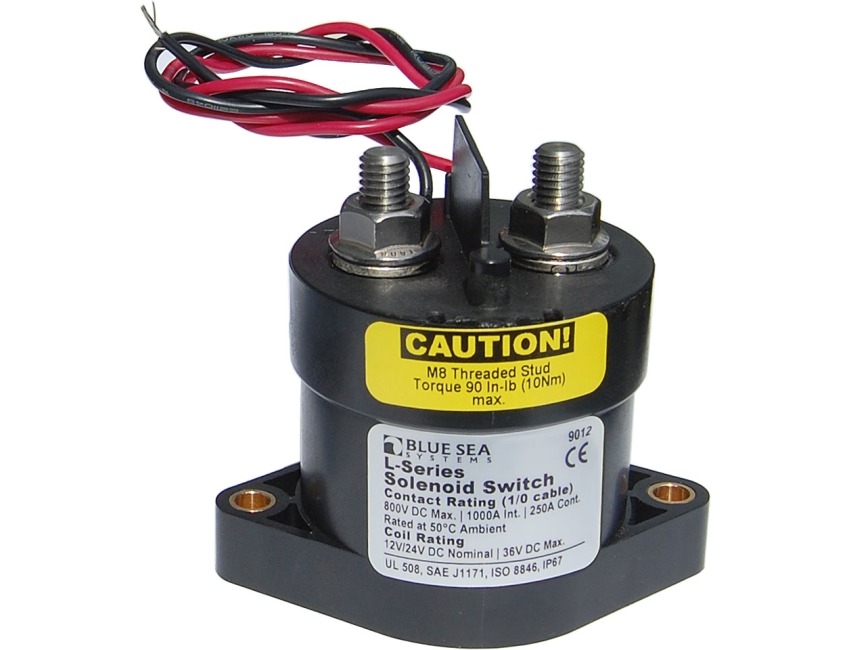

Blue Sea - Solenoid L-Series - 250A 12/24V - PN. 9012
Click to enlarge
MPN 9012
Delivery Information
Currently we only deliver to the UK (inc. Northern Ireland), Channel Islands, Norway, Australia, New Zealand, Canada and USA for online ordering - please contact us on sales@bottomlinemarine.com if you live elsewhere.
Free shipping on UK orders over £75 (£5.95 for UK orders under £75)
Excludes certain heavy items
All prices include UK VAT - No customs or duty fees for UK orders
Description
Blue Sea Solenoid L-Series - 250A 12/24V
Part No. 9012Continous duty, SPST - Normally Open
Hermetically sealed contacts / vaporproof
Ignition protected - safe for installation aboard gasoline powered boats
450 Amp Class
Activated by a low amperage ON-OFF switch mounted anywhere
Coil control circuit minimizes heating and amperage draw
No external coil suppression required
Specifications:
Control Circuit Voltage - 9-36V DC (12/24V nominal)
Control Circuit Connection - 20 AWG Tinned Wire
Contact Voltage - 800V DC
Amperage Operating Current continuous - 0.13A @ 12 V
0.07A @ 24 V
Amperage Operating Current when changing state - 3.6A
Terminal Stud - M8 (accepts 5/16" terminals)
Terminal Stud Torque - 90 in-lb (10.17 Nm) max
Continuous Rating - 250A
300A
400A
450A
Intermittent Rating - 275A (5 min)
400A (5 min)
500A (5 min)
600A (5 min)
Cranking Rating 30 sec - 1,000A
Contact Form - SPST-NO
Inrush Rating: 0.25 sec (10 repeats) - 2000A
Mounting Screw - #10 or M5
Stud Material - Stainless Steel
Terminal Stud Length - 0.66in (16.76 mm)
Weight - 1.00lb (0.45 kg)
Specification List
| Weight | 1.00lb (0.45 kg) | Country of Origin | USA |
|---|---|---|---|
| Tariff Code | 85365090 | Type | Solenoids |
| Sub-Type | L-Type |
