Blue Sea - SafetyHub 100 Fuse Block - PN. 7725
Click to enlarge
MPN 7725
Delivery Information
Currently we only deliver to the UK (inc. Northern Ireland), Channel Islands, Norway, Australia, New Zealand, Canada and USA for online ordering - please contact us on sales@bottomlinemarine.com if you live elsewhere.
Free shipping on UK orders over £75 (£5.95 for UK orders under £75)
Excludes certain heavy items
All prices include UK VAT - No customs or duty fees for UK orders
Description

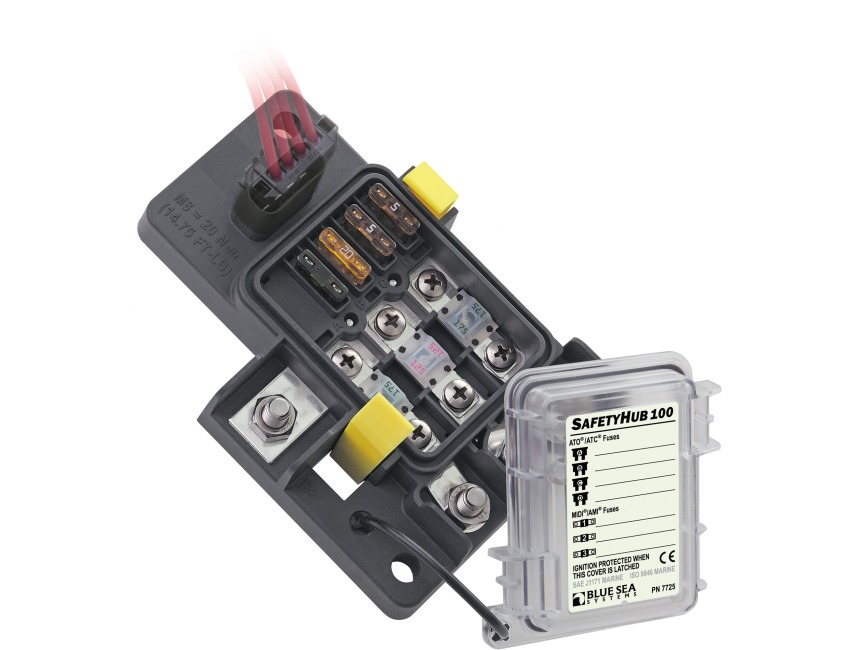

Blue Sea SafetyHub 100 Fuse Block (Fuses not included)
Part No. 7725The SafetyHub 100 combines an ignition protected fuse block and an integrated connecting plug. It is safe for use on gasoline powered boats, reduces wiring connections, and consolidates up to seven fused circuits.
Three 30A?200A MIDI®/AMI® fuses [sold separately] ideal for high-amp circuits including panel feeds, windlasses, and stereo amplifiers
Four 1A?20A ATO®/ATC® fuses [sold separately] ideal for circuits including bilge pumps, alarms, and clock memory
Sealed cover protects fuses from the harsh marine environment: IP66 rating—protected against powerful
water jets
Integrated connector plugs eliminate loose wires and provide a secure, waterproof connection
Ignition protected fusing meets Coast Guard and ABYC requirements for installation on gasoline or diesel powered boats
Specifications:
Circuits - 7
Stud Size - M8 × 1.25
Operating Voltage - 12V24V32V
Amperage Maximum Operating - combined - 280A
Recommended Ring Terminal - M8 (5/16")
Screw Torque - 8-32 - 18in-lb (2.03 Nm)
Screw Torque - M5 - 27in-lb (3.05 Nm)
Stud Torque - 180 in-lb (20.34 Nm)
Weight - 3.20lb (1.45 kg)
Specification List
| Type | Fuse Blocks | Sub-Type | - |
|---|---|---|---|
| Weight | 3.20lb (1.45 kg) | Country of Origin | USA |
| Tariff Code | 85389099 |
