Blue Sea - PowerBar 1000 - 8 3/8" Terminal Studs - PN. 1990
Click to enlarge
MPN 1990
Delivery Information
Currently we only deliver to the UK (inc. Northern Ireland), Channel Islands, Norway, Australia, New Zealand, Canada and USA for online ordering - please contact us on sales@bottomlinemarine.com if you live elsewhere.
Free shipping on UK orders over £75 (£5.95 for UK orders under £75)
Excludes certain heavy items
All prices include UK VAT - No customs or duty fees for UK orders
Description

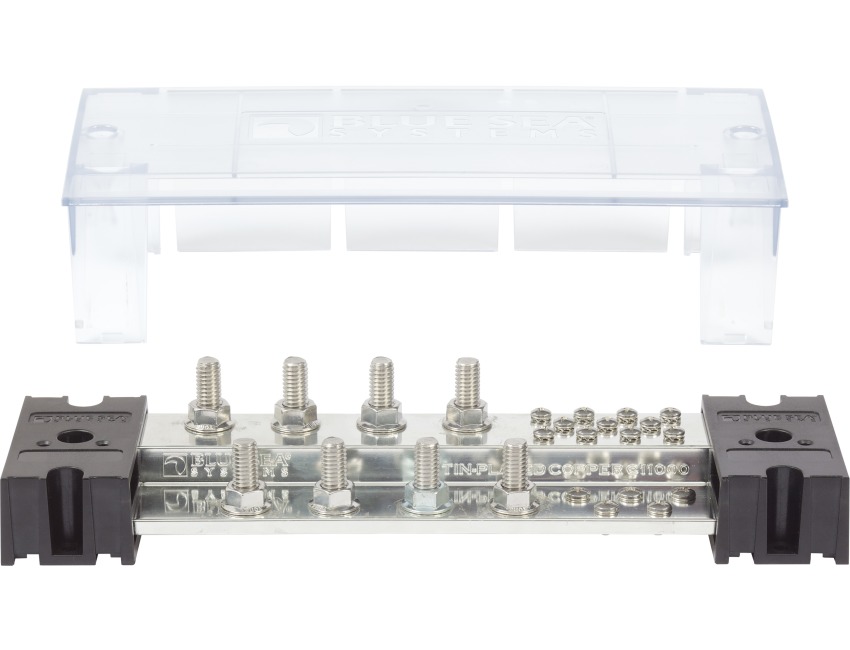

Blue Sea PowerBar 1000 - 8 3/8" Terminal Studs
Part No. 1990Complex wiring systems require a single point to consolidate large and small conductors. The PowerBar 1000 offers a 1,000 Amp busbar with various size studs and screws to connect conductors and fuse blocks.
1,000 Amp busbar for large complex wiring systems
Tin plated pure electrical copper for maximum conductivity
Stepped bus design offers two elevations for conductors which doubles
the density of the wire loom compared to traditional bus bars
Busbar and fuse block elevations match common fuse blocks allowing for multiple fuse block attachment, eliminating the need for connecting cables
One-piece serrated flange nuts ensure correct and secure connections
Stainless steel 8-32 screws with captive lock washers for securing smaller gauge wires
Busbar may be cut to a shorter length to accommodate constricted spaces
Bi-directional busbar end caps allow the ganging of additional busbars
Snap on insulating cover meets ABYC and USCG requirements and includes label recess
Specifications:
Maximum Voltage - 150V
Number of Terminal Studs - 8
Terminal Type - 3/8" - 16 Stud
Terminal Stud Torque - 140 in-lb (15.82 Nm)
Continuous Rating - 1000A
Base Material - UL 94-V0 Rated - Glass Reinforced Thermoplastics
Bus Material - Tin-Plated Copper C11000
Mounting Holes - Accepts #10 (M5) Screws
Screw Terminal Torque - 15 in-lb (1.69 Nm) 18 in-lb (2.03 Nm)
Terminal Screws - #10-32#8-32
Weight - 6.00lb (2.72 kg)
Specification List
| Weight | 6.00lb (2.72 kg) | Country of Origin | USA |
|---|---|---|---|
| Tariff Code | 85369090 | Type | Bus Bars |
| Sub-Type | - |
