Blue Sea - m-Series Selector 3 Position Battery Switch - Red - PN. 6008
Click to enlarge
MPN 6008
Delivery Information
Currently we only deliver to the UK (inc. Northern Ireland), Channel Islands, Norway, Australia, New Zealand, Canada and USA for online ordering - please contact us on sales@bottomlinemarine.com if you live elsewhere.
Free shipping on UK orders over £75 (£5.95 for UK orders under £75)
Excludes certain heavy items
All prices include UK VAT - No customs or duty fees for UK orders
Description

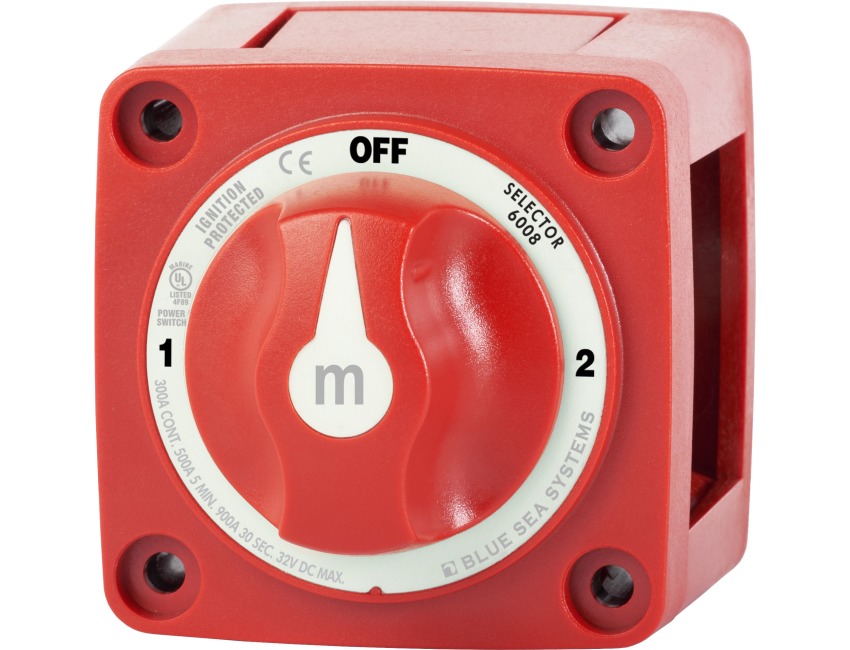

Blue Sea m-Series Selector 3 Position Battery Switch - Red
Part No. 6008Switches a single battery to a single load group.
Ignition protected—safe for installation aboard gasoline powered boats
Case design allows surface or rear panel mounting
Specifications:
Switch Type - Selector 3 Position
Color - Red
Switch Positions - 3
Battery Combine - No
Alternator Field Disconnect - No
Maximum Voltage - 32V DC
Stud Size - 3/8"
Terminal Stud Torque - 120 in-lb (13.56 Nm)
Continuous Rating - 300A
Intermittent Rating - 500A (5 Min)
Cranking Rating 30 sec - 900A
Battery Inputs - 2
Cable Clearance For 4/0 AWG Cables - 1.12in (28.45 mm)
Cable Size to Meet Ratings - 4/0 AWG (120mm²)4/0 AWG (130mm²)
Mounting Holes - Accept #10 Screw
Stud Material - Tinned Copper
Stud Torque - 120 in-lb (13.56 Nm)
Terminal Stud Size - 3/8" - 16 (M10)
Weight - 0.77lb (0.35 kg)
Specification List
| Sub-Type | Manually operated | Weight | 0.77lb (0.35 kg) |
|---|---|---|---|
| Country of Origin | USA | Tariff Code | 85365090 |
| Type | Battery Switch |
