Description

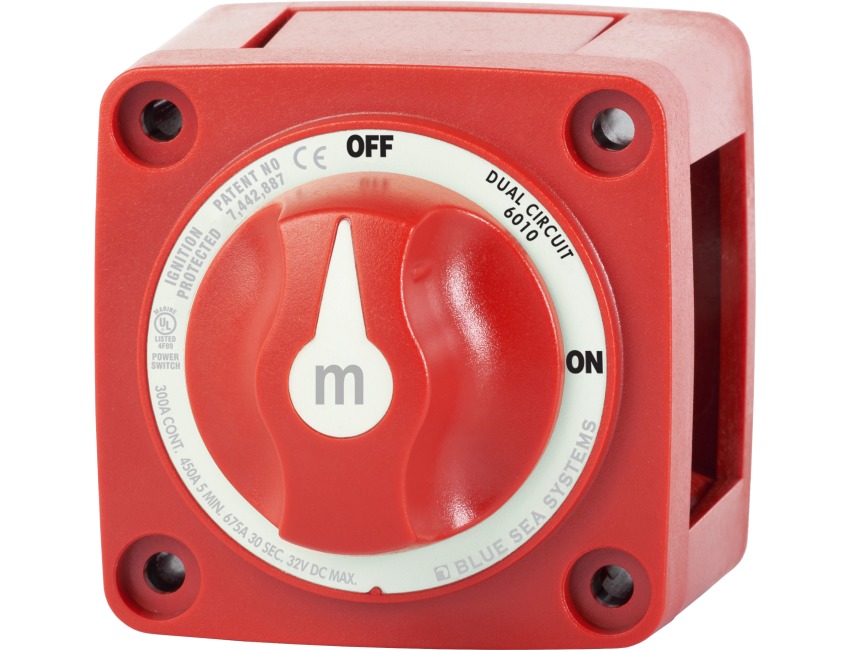

Blue Sea m-Series Mini Dual Circuit Battery Switch - Red
Part No. 6010Simultaneously switches two isolated battery banks
Specifications:
Switch Type - Dual Circuit
Color - Red
Switch Positions - 2
Battery Combine - No
Alternator Field Disconnect - No
Maximum Voltage - 32V DC
Stud Size - 3/8"
Terminal Stud Torque - 120 in-lb (13.56 Nm)
Continuous Rating - 300A
Intermittent Rating - 450A (5 min)
Cranking Rating 30 sec - 675A per circuit
Battery Inputs - 2
Cable Clearance For 4/0 AWG Cables - 1.12in (28.45 mm)
Cable Size to Meet Ratings - 4/0 AWG (120mm²)
Mounting Holes - Accept #10 Screw
Stud Material - Tinned Copper
Stud Torque - 120 in-lb (13.56 Nm)
Terminal Stud Size - 3/8" - 16 (M10)
Weight - 0.80lb (0.36 kg)
Weight - 0.80lb (0.36 kg)
Specification List
| Sub-Type | Manually operated | Weight | 0.80lb (0.36 kg)0.80lb (0.36 kg) |
|---|---|---|---|
| Country of Origin | USA | Tariff Code | 85365090 |
| Type | Battery Switch |
