Blue Sea - MRBF Surface Mount Fuse Block - Independent Source - PN. 5194
Click to enlarge
MPN 5194
Delivery Information
Currently we only deliver to the UK (inc. Northern Ireland), Channel Islands, Norway, Australia, New Zealand, Canada and USA for online ordering - please contact us on sales@bottomlinemarine.com if you live elsewhere.
Free shipping on UK orders over £75 (£5.95 for UK orders under £75)
Excludes certain heavy items
All prices include UK VAT - No customs or duty fees for UK orders
Description

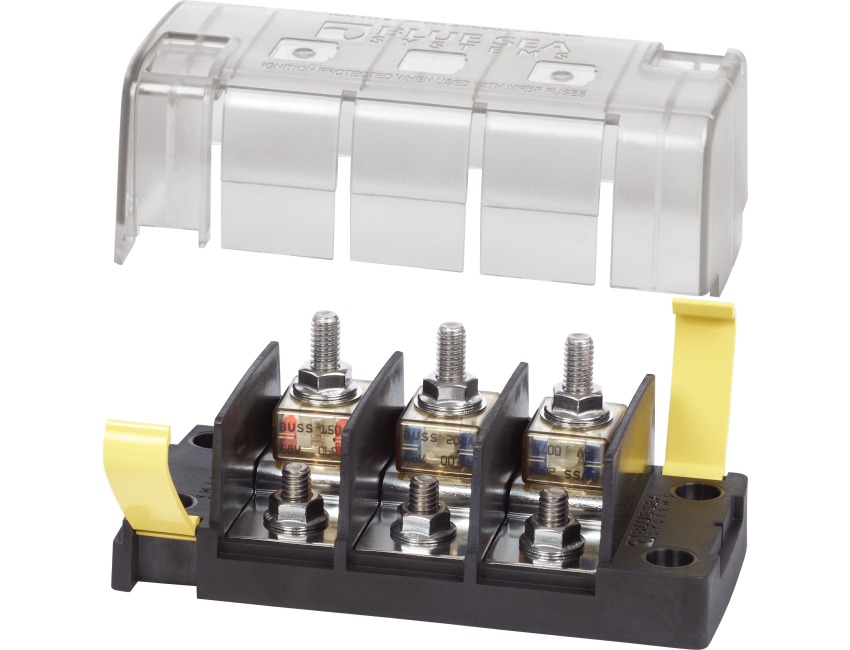

Blue Sea MRBF Surface Mount Fuse Block - Independent Source (Fuses not included)
Part No. 5194Accommodates three MRBF fuses for consolidated high amperage circuit protection
Ideal for 3 output battery chargers
Clip-on insulating cover satisfies ABYC/USCG insulation requirements
Versatile wiring options allow all wires to come out a single side
Label recesses accommodate Blue Sea Systems Square Format labels for easy circuit identification
One-piece stainless flange nuts ensure safe and secure connections
Fuses sold separately
Specifications:
Ignition Protected - Yes
Maximum Amperage - 240A per circuit
Maximum Voltage - 58V DC
Mounting - Surface Mount M5 (#10)
Maximum Torque - 100 in-lb (11.3 Nm)
Terminal Stud Size - M8 (5/16"-18)
Weight - 1.20lb (0.54 kg)
Optional Accessories -
- Any Marine Rated Battery Fuses
Specification List
| Type | Fuse Blocks | Sub-Type | - |
|---|---|---|---|
| Weight | 1.20lb (0.54 kg) | Country of Origin | USA |
| Tariff Code | 85389099 |
