Blue Sea - Mini OLED (40mm) Ammeter - Yellow - PN. 1732
Click to enlarge
MPN 1732
Delivery Information
Currently we only deliver to the UK (inc. Northern Ireland), Channel Islands, Norway, Australia, New Zealand, Canada and USA for online ordering - please contact us on sales@bottomlinemarine.com if you live elsewhere.
Free shipping on UK orders over £75 (£5.95 for UK orders under £75)
Excludes certain heavy items
All prices include UK VAT - No customs or duty fees for UK orders
Description

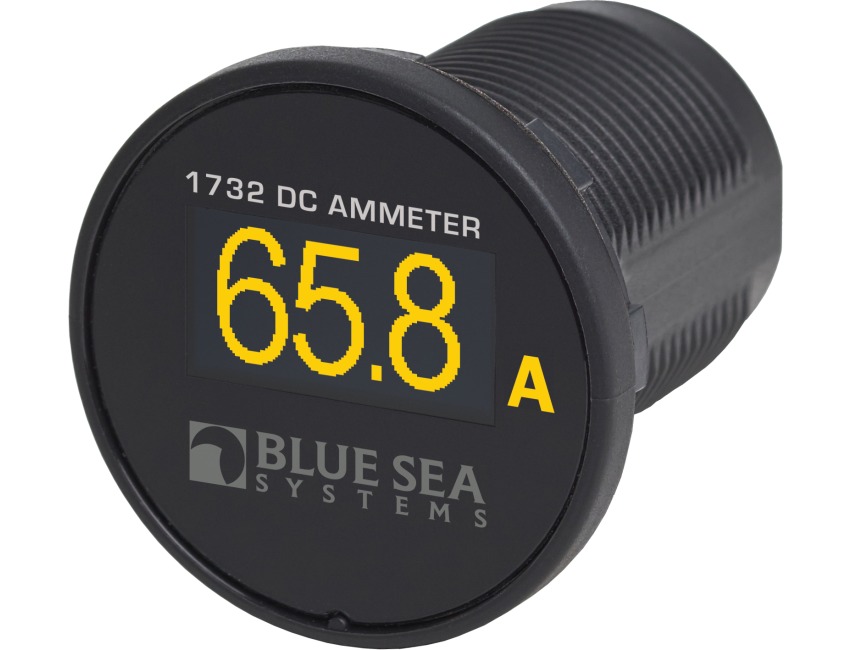

Blue Sea Mini OLED (40mm) Ammeter - Yellow
Part No. 1732Monitors essential electrical system parameters on a
bright, waterproof, daylight readable OLED screen
Compact size enables mounting in any convenient location
Reverse polarity protected
Mounts in a common 1-1/8 in hole
Convenient amperage monitoring
Monitors -100A to 100A DC
Positive or negative side wiring
Specifications:
Color - Yellow
Meter - Current
Nominal Voltage - 12V DC24V DC
Resolution - 0.1A
Intermittent Rating - 110A
Cranking Rating 30 sec - 175A
Accuracy - ± 2%
Input Voltage Range - 8-36V DC
Lifecycles - 100,000 hours
Operating Current - 15mA
Operating Temperature Range - -40°C – 70°C (-40°F – 158°F)
Weight - 0.70lb (0.32 kg)
Specification List
| Type | Meters | Sub-Type | Mini OLED |
|---|---|---|---|
| Weight | 0.70lb (0.32 kg) | Country of Origin | USA |
| Tariff Code | 91040000 |
