Blue Sea - Mini Clamp Multimeter - AC/DC - PN. 8110

Click to enlarge

MPN 8110

Delivery Information

Currently we only deliver to the UK (inc. Northern Ireland), Channel Islands, Norway, Australia, New Zealand, Canada and USA for online ordering - please contact us on sales@bottomlinemarine.com if you live elsewhere.

Free shipping on UK orders over £75 (£5.95 for UK orders under £75)
Excludes certain heavy items
All prices include UK VAT - No customs or duty fees for UK orders

Description
Specification

Description

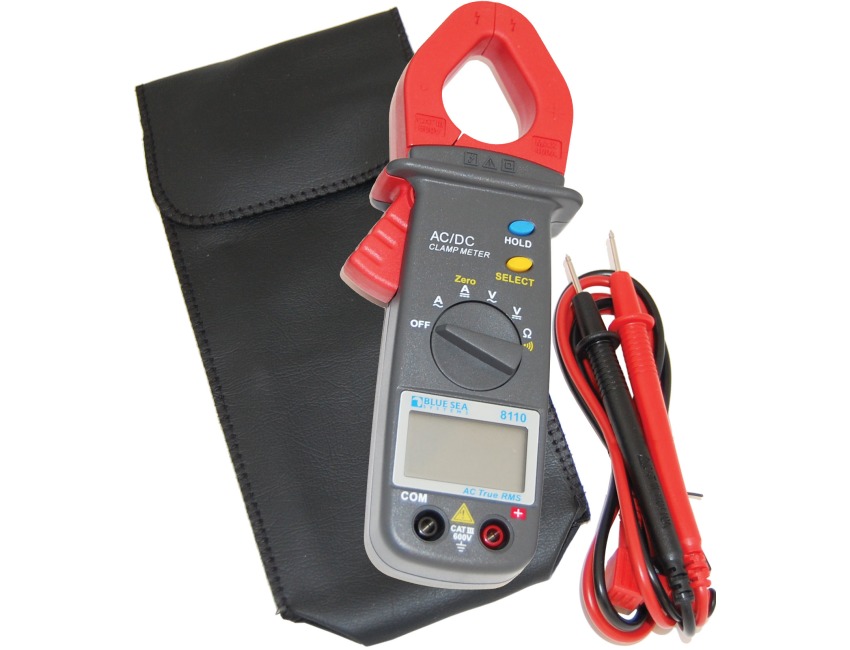

Blue Sea Mini Clamp Multimeter - AC/DC

Part No. 8110

Clamp allows measurement of AC and DC current in wires without disturbing the circuits or contacting live terminals
Auto range simplifies operation: 0.01-400 Amps, 0.001-600 Volts
Auto power-off selection - power turns off automatically after 10 minutes of non-use
True RMS - required for accurate measurement of inverter output
Large digital display makes reading measurements easy
Data hold - press "HOLD" button during measurement to lock reading value
Test leads included with meter

Specifications:
Amperage - 0.01-400A AC
0.01-400A DC
Voltage - 0.001-600V AC
0.001-600V DC
Low Battery Indicator - Yes
Maximum Clamp Size - 30mm (1.18 in)
Measurement Resolution - 4300 Counts
Operating Elevation - up to 2000m above sea level
Operating Humidity - Below 80% RH (no condensation)
Range - Auto
Resistance/Continuity Alarm - 0.1-40M?
Sampling Rate - Approximately 2 times/second
Operating Temperature Range - 0-50C (32-122F)
Weight - 0.47lb (0.21 kg)

Specification List

Type	Meters	Sub-Type	Tool
Weight	0.47lb (0.21 kg)	Country of Origin	USA
Tariff Code	91040000
