Blue Sea - MEGA® / AMG® Fuse Block - 100-300A with Cover - PN. 5001

Click to enlarge

MPN 5001

Delivery Information

Currently we only deliver to the UK (inc. Northern Ireland), Channel Islands, Norway, Australia, New Zealand, Canada and USA for online ordering - please contact us on sales@bottomlinemarine.com if you live elsewhere.

Free shipping on UK orders over £75 (£5.95 for UK orders under £75)
Excludes certain heavy items
All prices include UK VAT - No customs or duty fees for UK orders

Description
Specification

Description

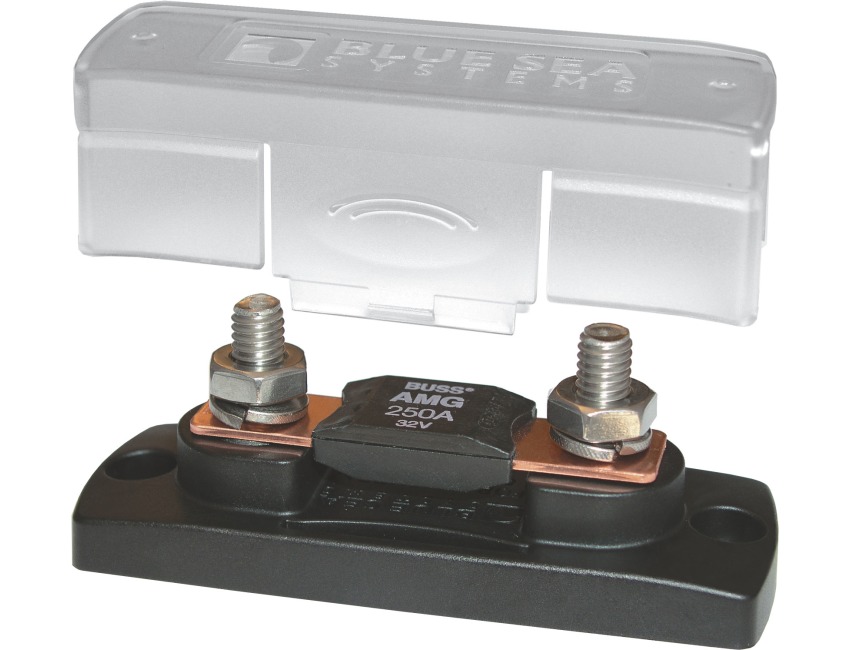

Blue Sea MEGA® / AMG® Fuse Block - 100-300A with Cover (Fuse is not included)

Part No. 5001

Accepts 5/16" (M8) ring terminals
Insulating cover satisfies ABYC/USCG insulation requirements
Insulating cover breakouts allow wire access in three directions
Insert molded studs ensure secure fuse mounting
Stainless steel studs provide resistance to corrosion and high torque for excellent electrical contact
UL 94-V0 base resists high heat
Fuse sold seperately

Specifications:
Maximum Voltage - 32V DC
Stud Size - 5/16"
Base Material - Reinforced PBT
Cover Material - Polycarbonate
Maximum Terminal Torque - 110 in-lb (12.43 Nm)
Stud Torque - 120 in-lb (13.56 Nm)
Weight - 0.35lb (0.16 kg)
Weight - 0.35lb (0.16 kg)
Optional Accessories -
- Any MEGA-AMG Fuses

Specification List

Type	Fuse Blocks	Sub-Type	-
Weight	0.35lb (0.16 kg)0.35lb (0.16 kg)	Country of Origin	USA
Tariff Code	85389099
