Blue Sea - MaxiBus 250A BusBar - Six 5/16"-18 Studs - PN. 2126

Click to enlarge

MPN 2126

£73.70

Delivery Information

Currently we only deliver to the UK (inc. Northern Ireland), Channel Islands, Norway, Australia, New Zealand, Canada and USA for online ordering - please contact us on sales@bottomlinemarine.com if you live elsewhere.

Free shipping on UK orders over £75 (£5.95 for UK orders under £75)
Excludes certain heavy items
All prices include UK VAT - No customs or duty fees for UK orders

Description

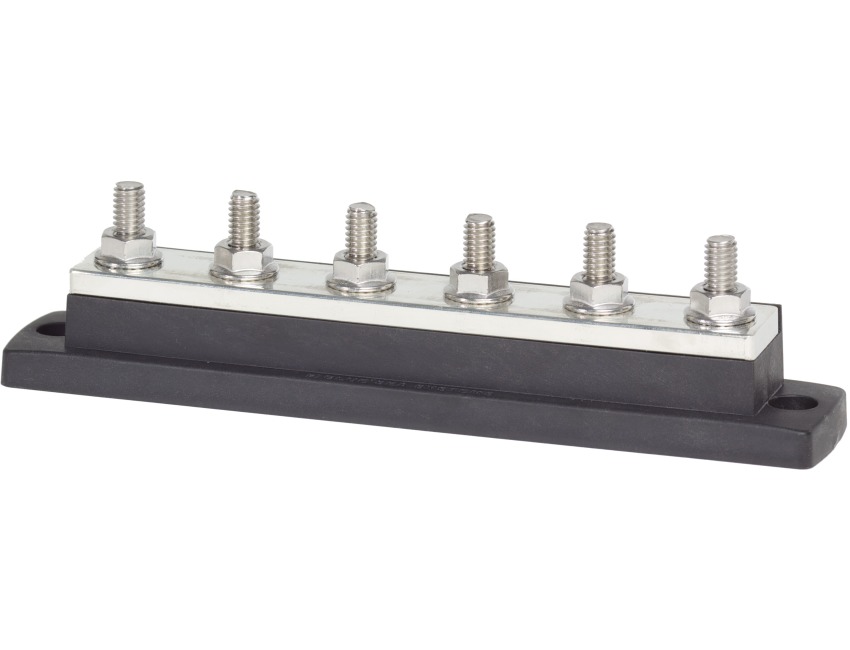

Blue Sea MaxiBus 250A BusBar - Six 5/16"-18 Studs

Part No. 2126

Busbars are used to consolidate multiple wires or feed multiple circuits
Insert molded stainless steel studs eliminate need for securing nut and allow high torquing for excellent electrical contact
Raised bus provides easy access to multiple wires on a single stud
UL 94-V0 rated base material resists high heat
Recessed mounting holes eliminate accidental shorts to aluminum and steel mounting surfaces

Specifications:
Maximum Voltage - 300V AC48V DC
Number of Terminal Studs - 6
Terminal Type - 5/16"-18 Stud
Continuous Rating - 250A
Base Material - UL 94-V0 Rated - Glass Reinforced Thermoplastics
Bus Material - Tin-Plated Copper CDA 110 / UNS 11000
Recommended Stud Torque - 132 in-lb (14.91 N·m)
Weight - 1.00lb (0.45 kg)

Specification List

Weight 1.00lb (0.45 kg) Country of Origin USA
Tariff Code 85369090 Type Bus Bars
Sub-Type -
