Blue Sea - MAXI Fuse Block - PN. 5006100

Click to enlarge

MPN 5006100

Delivery Information

Currently we only deliver to the UK (inc. Northern Ireland), Channel Islands, Norway, Australia, New Zealand, Canada and USA for online ordering - please contact us on sales@bottomlinemarine.com if you live elsewhere.

Free shipping on UK orders over £75 (£5.95 for UK orders under £75)
Excludes certain heavy items
All prices include UK VAT - No customs or duty fees for UK orders

Description
Specification

Description

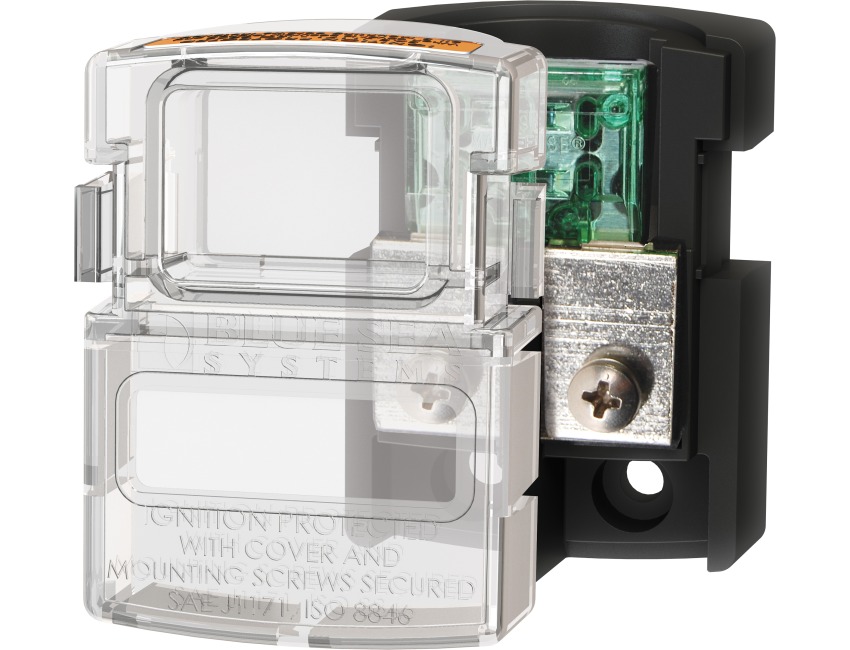

Blue Sea MAXI Fuse Block (Fuses not included)

Part No. 5006100

Snap-on terminal cover insulates all conductive parts, satisfying ABYC/USCG requirements
Cover breakouts allow wires from sides or bottom
Terminal screws compress fuse blades within blocks for low resistance connections
Ignition Protected
Label recess accepts large format label
Fuses sold separately

Specifications:
Maximum Amperage - 80A
Maximum Voltage - 32V DC
Mounting - #10 Screws
Screw Terminal Torque - 25 in-lb (2.82 Nm)
Wire Size - 14 - 4 AWG
Weight - 0.25lb (0.11 kg)
Optional Accessories -
- Any MAXI Fuses

Specification List

Type	Fuse Blocks	Sub-Type	-
Weight	0.25lb (0.11 kg)	Country of Origin	USA
Tariff Code	85389099
