Blue Sea - Marine Grade Short Stop Circuit Breakers - 25A - PN. 7154

Click to enlarge

MPN 7154

£11.93

Delivery Information

Currently we only deliver to the UK (inc. Northern Ireland), Channel Islands, Norway, Australia, New Zealand, Canada and USA for online ordering - please contact us on sales@bottomlinemarine.com if you live elsewhere.

Free shipping on UK orders over £75 (£5.95 for UK orders under £75)
Excludes certain heavy items
All prices include UK VAT - No customs or duty fees for UK orders

Description

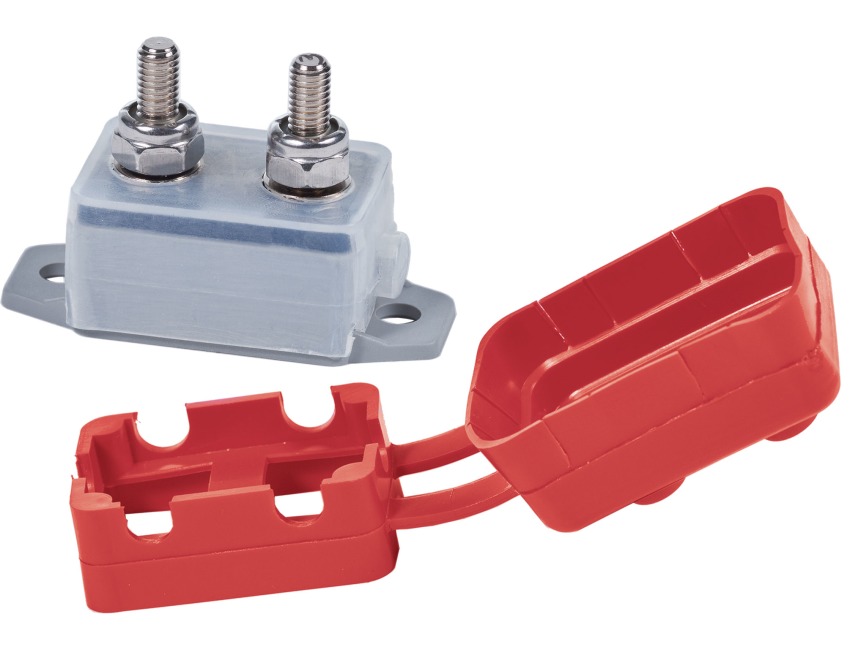

Blue Sea Marine Grade Short Stop Circuit Breakers - 25A

Part No. 7154



Specifications:
Amperage - 25A DC
Maximum Voltage - 28V DC
Circuit Breaker Type - Thermal trip - manual reset
Terminal Stud - #10-32
Terminal Stud Torque - 20 in-lb (2.26 Nm)
Interrupt Capacity - 2500A @ 28V DC
Minimum Operating Temperature - -10° C
Maximum Operating Temperature - 60° C
Weight - 0.06lb (0.03 kg)

Specification List

Sub-Type Short Stop Weight 0.06lb (0.03 kg)
Country of Origin USA Tariff Code 853620
Type Circuit Breakers
