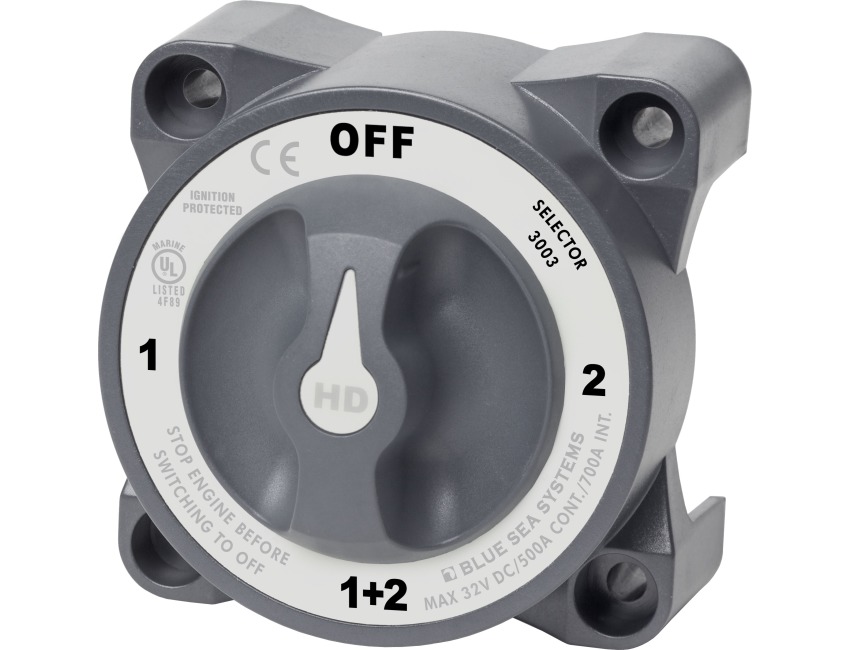

Blue Sea HD-Series Heavy Duty Selector Battery Switch with AFD

Part No. 3003

Switches isolated battery banks to all loads or combines battery banks to all loads
Includes AFD (Alternator Field Disconnect)
Make-before-break contact design allows switching between battery banks without power interruption
Ignition protected—safe for installation aboard gasoline powered boats
Case design allows surface or rear panel mounting
Accepts two 4/0 AWG (95mm²) battery cables

Specifications:
Switch Type - Selector 4 Position
Color - Grey
Switch Positions - 4
Battery Combine - Yes
Alternator Field Disconnect - Yes
Maximum Voltage - 32V DC
Terminal Stud Torque - 220 in-lb (24.86 Nm)
Continuous Rating - 500A
Intermittent Rating - 700A (5 min)
Cranking Rating 30 sec - 1600A
Battery Inputs - 2
Cable Clearance For 4/0 AWG Cables - 1.10in (27.94 mm)
Cable Quantity to Meet Ratings - Two Cables / Terminal
Cable Size to Meet Ratings - 4/0 AWG (120mm²)
Mounting Holes - Accept 1/4" (M6) Screw
Stud Material - Tinned Copper
Terminal Stud Size - 1/2" (M12)
Weight - 1.25lb (0.57 kg)

Specification List

Sub-Type	Manually operated	Weight	1.25lb (0.57 kg)
Country of Origin	USA	Tariff Code	85365090
Type	Battery Switch
