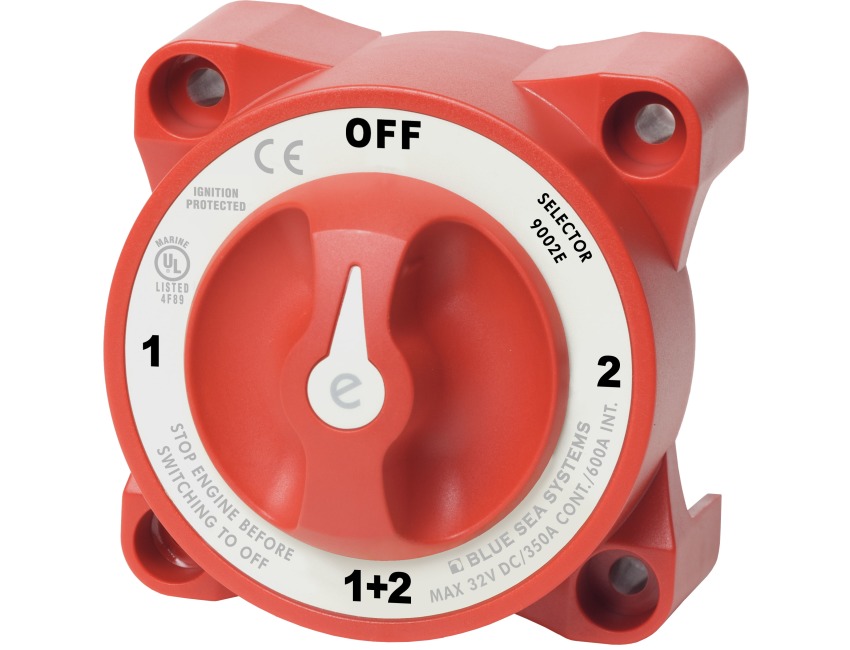

Blue Sea - e-Series Selector Battery Switch with AFD - PN. 9002e
Click to enlarge
MPN 9002e
Delivery Information
Currently we only deliver to the UK (inc. Northern Ireland), Channel Islands, Norway, Australia, New Zealand, Canada and USA for online ordering - please contact us on sales@bottomlinemarine.com if you live elsewhere.
Free shipping on UK orders over £75 (£5.95 for UK orders under £75)
Excludes certain heavy items
All prices include UK VAT - No customs or duty fees for UK orders
Description
Blue Sea e-Series Selector Battery Switch with AFD
Part No. 9002eSwitches isolated battery banks to all loads or combines battery banks to all loads
Includes AFD (Alternator Field Disconnect)
Make-before-break contact design allows switching between battery banks without power interruption
Ignition protected—safe for installation aboard gasoline powered boats
Case design allows surface or rear panel mounting
Specifications:
Switch Type - Selector 4 Position
Color - Red
Switch Positions - 4
Battery Combine - Yes
Alternator Field Disconnect - Yes
Maximum Voltage - 32V DC
Terminal Stud Torque - 140 in-lb (15.82 Nm)
Continuous Rating - 350A
Intermittent Rating - 600A (5 min)
Cranking Rating 30 sec - 1200A
Battery Inputs - 2
Cable Clearance For 4/0 AWG Cables - 1.10in (27.94 mm)
Cable Size to Meet Ratings - 4/0 AWG (120mm²)
Mounting Holes - Accept 1/4" (M6) Screw
Stud Material - Tinned Copper
Terminal Stud Size - 3/8" - 16 (M10)
Weight - 1.15lb (0.52 kg)
Specification List
| Sub-Type | Manually operated | Weight | 1.15lb (0.52 kg) |
|---|---|---|---|
| Country of Origin | USA | Tariff Code | 85365090 |
| Type | Battery Switch |
