Blue Sea - e-Series On Off Battery Switch - PN. 9003e
Click to enlarge
Codex
MPN 9003e
Delivery Information
Currently we only deliver to the UK (inc. Northern Ireland), Channel Islands, Norway, Australia, New Zealand, Canada and USA for online ordering - please contact us on sales@bottomlinemarine.com if you live elsewhere.
Free shipping on UK orders over £75 (£5.95 for UK orders under £75)
Excludes certain heavy items
All prices include UK VAT - No customs or duty fees for UK orders
Description

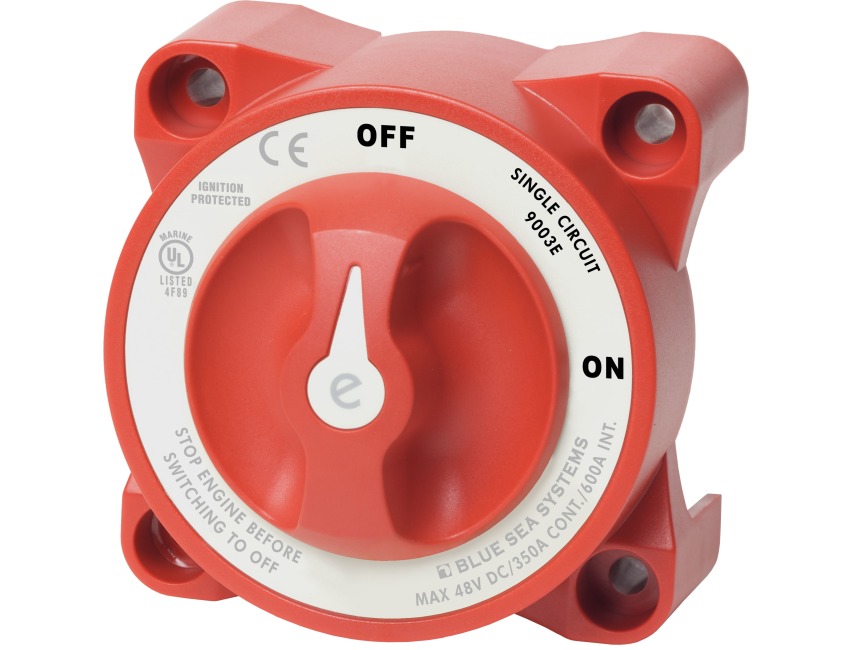

Blue Sea e-Series On Off Battery Switch
Part No. 9003eSwitches a single battery to a single load group
Ignition protected—safe for installation aboard gasoline powered boats
Case design allows surface or rear panel mounting
Specifications:
Switch Type - Single Circuit ON-OFF
Color - Red
Switch Positions - 2
Battery Combine - No
Alternator Field Disconnect - No
Maximum Voltage - 48V DC
Terminal Stud Torque - 140 in-lb (15.82 Nm)
Continuous Rating - 350A
Intermittent Rating - 600A (5 min)
Cranking Rating 30 sec - 1200A
Battery Inputs - 1
Cable Clearance For 4/0 AWG Cables - 1.10in (27.94 mm)
Cable Size to Meet Ratings - 4/0 AWG (120mm²)
Mounting Holes - Accept 1/4" (M6) Screw
Stud Material - Tinned Copper
Terminal Stud Size - 3/8" - 16 (M10)
Weight - 0.95lb (0.43 kg)
Specification List
| Sub-Type | Manually operated | Weight | 0.95lb (0.43 kg) |
|---|---|---|---|
| Country of Origin | USA | Tariff Code | 85365090 |
| Type | Battery Switch |
