Blue Sea - DualBus Plus 150A BusBar - 1/4"-20 Stud 5 Gang - PN. 2722
Click to enlarge
MPN 2722
Delivery Information
Currently we only deliver to the UK (inc. Northern Ireland), Channel Islands, Norway, Australia, New Zealand, Canada and USA for online ordering - please contact us on sales@bottomlinemarine.com if you live elsewhere.
Free shipping on UK orders over £75 (£5.95 for UK orders under £75)
Excludes certain heavy items
All prices include UK VAT - No customs or duty fees for UK orders
Description

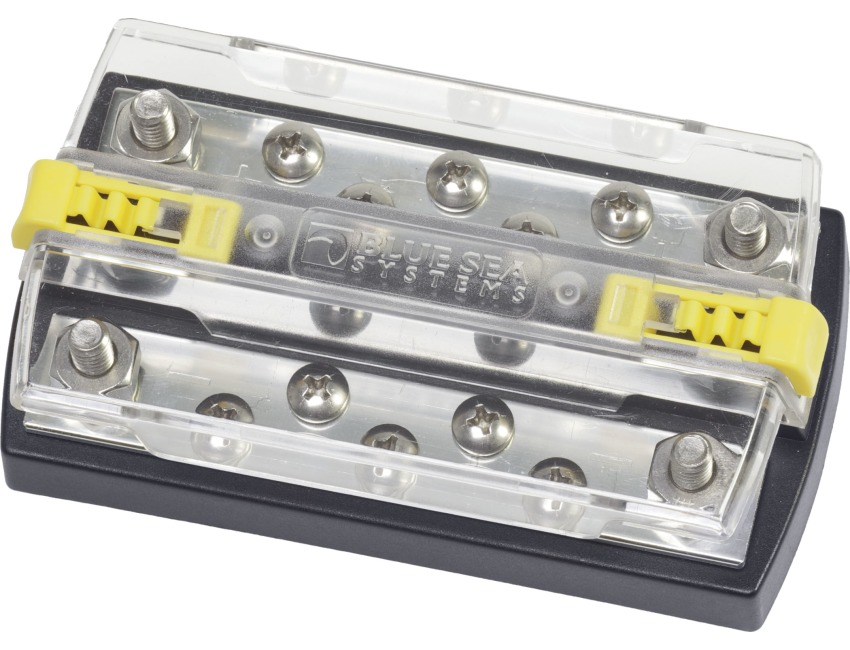

Blue Sea DualBus Plus 150A BusBar - 1/4"-20 Stud 5 Gang
Part No. 2722Combines negative and positive buses on one block
Clear polycarbonate cover snaps on to meet Coast Guard and ABYC insulation requirements
Specifications:
Maximum Voltage - 300V AC
48V DC
Number of Screw Terminals - 5 per bus
Number of Terminal Studs - 2 per bus
Terminal Type - #10-32 Screw
1/4" Stud
Continuous Rating - 130A AC
150A DC
Base Material - UL 94-V0 Rated - Glass Reinforced Thermoplastics
Bus Material - Tin-Plated Copper CDA 110 / UNS 11000
Cover Material - Clear Polycarbonate
Mounting Screw - #10 (M5)
Screw Terminal Torque - 18 in-lb (2.03 Nm)
Stud Torque - 60 in-lb (6.78 Nm)
Weight - 0.61lb (0.28 kg)
Specification List
| Weight | 0.61lb (0.28 kg) | Country of Origin | USA |
|---|---|---|---|
| Tariff Code | 85369090 | Type | Bus Bars |
| Sub-Type | - |
