Blue Sea - DualBus 100A BusBar - 10 Circuit - PN. 2702

Click to enlarge

MPN 2702

£26.87

Delivery Information

Currently we only deliver to the UK (inc. Northern Ireland), Channel Islands, Norway, Australia, New Zealand, Canada and USA for online ordering - please contact us on sales@bottomlinemarine.com if you live elsewhere.

Free shipping on UK orders over £75 (£5.95 for UK orders under £75)
Excludes certain heavy items
All prices include UK VAT - No customs or duty fees for UK orders

Description

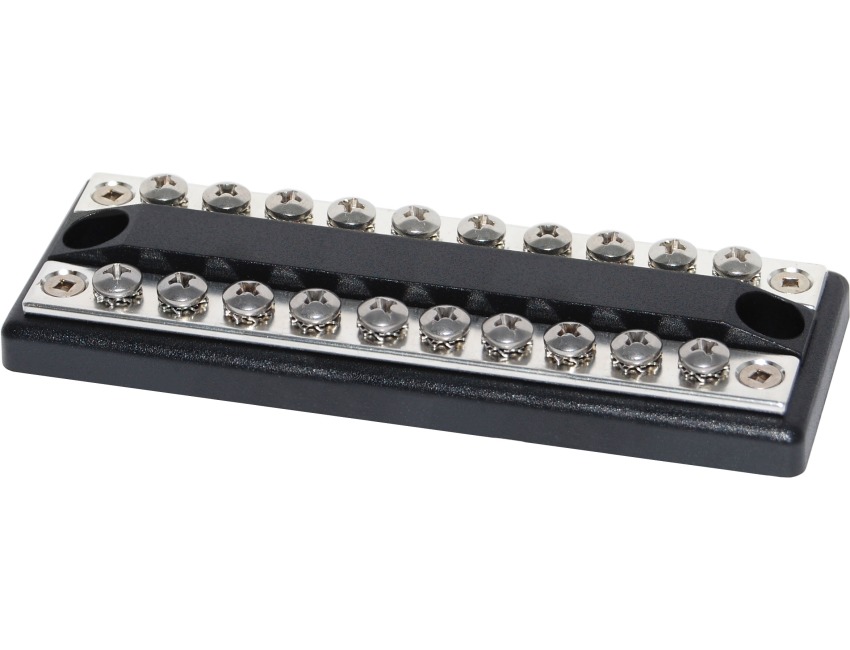

Blue Sea DualBus 100A BusBar - 10 Circuit

Part No. 2702

Combines negative and positive buses on one block

Specifications:
Maximum Voltage - 300V AC48V DC
Number of Screw Terminals - 10 per bus
Terminal Type - #8-32 Screw
Continuous Rating - 100A
Base Material - UL 94-V0 Rated - Glass Reinforced Thermoplastics
Bus Material - Tin-Plated Copper CDA 110 / UNS 11000
Screw Terminal Torque - 15 in-lb (1.69 Nm)
Height - 5?8 in (15.88 mm)
Weight - 0.27lb (0.12 kg)

Specification List

Weight 0.27lb (0.12 kg) Country of Origin USA
Tariff Code 85369090 Type Bus Bars
Sub-Type -
