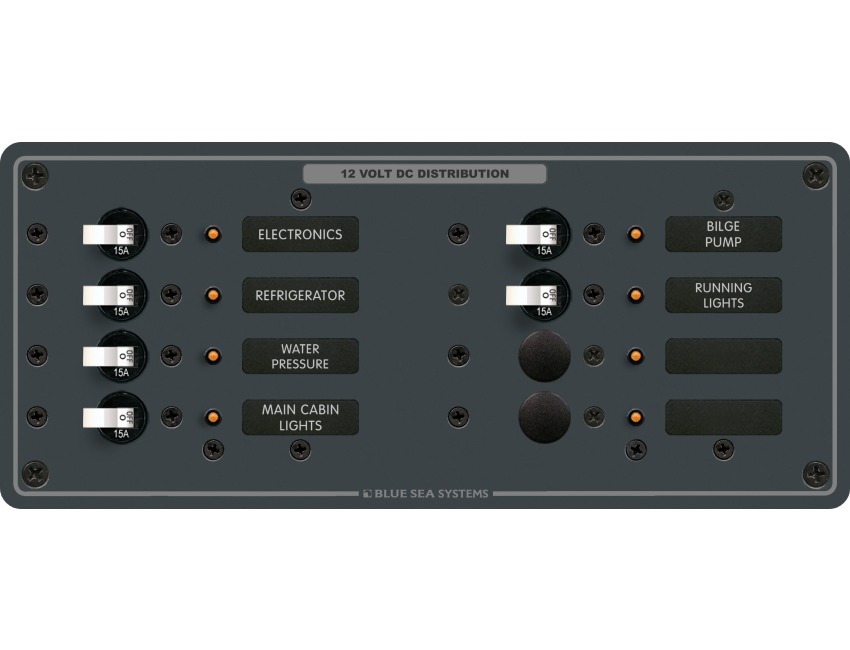

Blue Sea - DC Panel - 8 Position Horizontal - PN. 8385

Click to enlarge

MPN 8385

£281.67

Delivery Information

Currently we only deliver to the UK (inc. Northern Ireland), Channel Islands, Norway, Australia, New Zealand, Canada and USA for online ordering - please contact us on sales@bottomlinemarine.com if you live elsewhere.

Free shipping on UK orders over £75 (£5.95 for UK orders under £75)
Excludes certain heavy items
All prices include UK VAT - No customs or duty fees for UK orders

Description

Blue Sea DC 8 Position Horizontal (6 Pre-populated)

Part No. 8385

All positive, negative and grounding buses installed, fully pre-wired
Panels with meters include toggle switch for mounting up to 3 battery banks
All panels with analog meters are owner upgradable to 24 Volts with 8240 or 8243 (18-32V DC meters)
All circuit label positions are backlit on standard panels - No kit required
"ON" indicating LEDs installed in all circuit positions

Specifications:
Positions - 8
Nominal Voltage - 12V DC / 24V DC
Maximum Amperage - 100A per bus
Height - 4.50in (114.3 mm)
Width - 10.50in (266.7 mm)
Depth - 2.50in (63.5 mm)
Weight - 2.70lb (1.22 kg)

Specification List

Weight 2.70lb (1.22 kg) Country of Origin USA
Tariff Code 85371000 Type DC Panels
Sub-Type Below-deck
