Blue Sea - DC Panel - 13 Position - PN. 8376

Click to enlarge

MPN 8376

£471.70

Delivery Information

Currently we only deliver to the UK (inc. Northern Ireland), Channel Islands, Norway, Australia, New Zealand, Canada and USA for online ordering - please contact us on sales@bottomlinemarine.com if you live elsewhere.

Free shipping on UK orders over £75 (£5.95 for UK orders under £75)
Excludes certain heavy items
All prices include UK VAT - No customs or duty fees for UK orders

Description

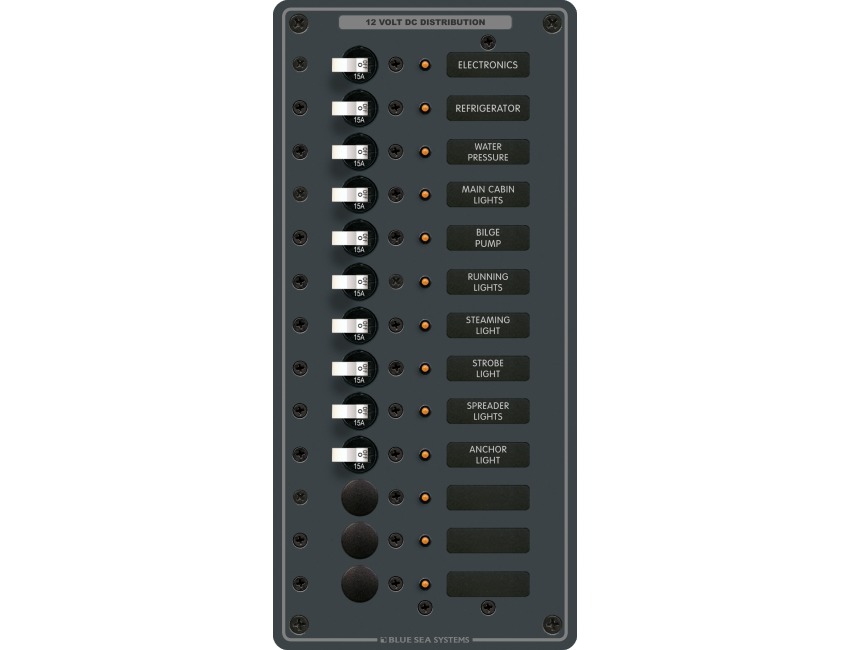

Blue Sea DC 13 Position (10 pre-populated)

Part No. 8376

All positive, negative and grounding buses installed, fully pre-wired
Panels with meters include toggle switch for mounting up to 3 battery banks
All panels with analog meters are owner upgradable to 24 Volts with 8240 or 8243 (18-32V DC meters)
All circuit label positions are backlit on standard panels - No kit required
"ON" indicating LEDs installed in all circuit positions

Specifications:
Positions - 13
Nominal Voltage - 12V DC / 24V DC
Maximum Amperage - 100A
Height - 11.25in (285.75 mm)
Width - 5.25in (133.35 mm)
Weight - 2.76lb (1.25 kg)

Specification List

Weight 2.76lb (1.25 kg) Country of Origin USA
Tariff Code 85371000 Type DC Panels
Sub-Type Below-deck
