Blue Sea - DC Digital Ammeter - 500 to 500A - PN. 8236

Click to enlarge

MPN 8236

Delivery Information

Currently we only deliver to the UK (inc. Northern Ireland), Channel Islands, Norway, Australia, New Zealand, Canada and USA for online ordering - please contact us on sales@bottomlinemarine.com if you live elsewhere.

Free shipping on UK orders over £75 (£5.95 for UK orders under £75)
Excludes certain heavy items
All prices include UK VAT - No customs or duty fees for UK orders

Description
Specification

Description

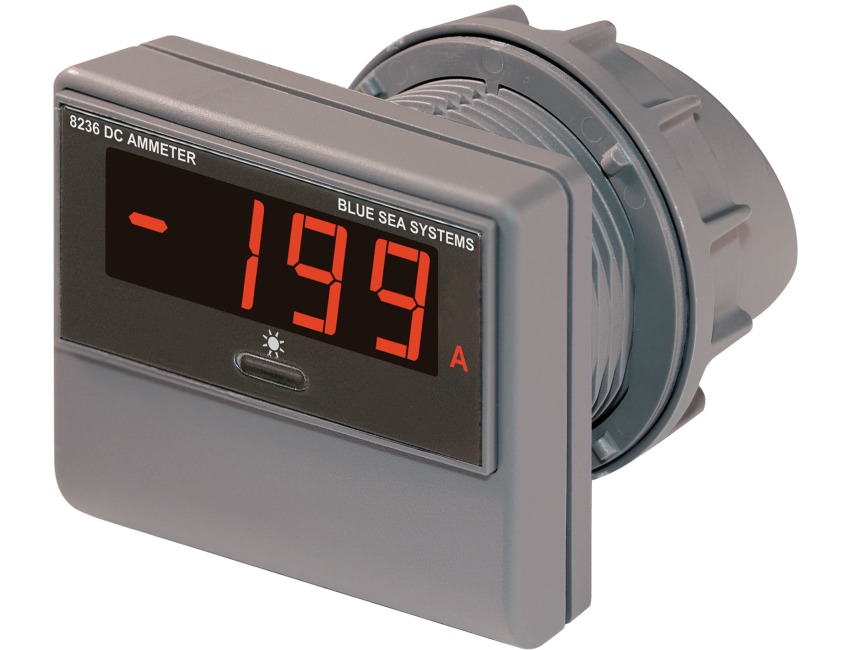

Blue Sea DC Digital Ammeter - 500 to 500A

Part No. 8236

Displays amperage from -500 to +500 Amps
3 levels of display brightness
Splashproof front
Manual sleep mode blanks display for power conservation
Standard meter operates in negative side of circuit only. Shunt Shifter required for positive side installation such as alternators
Includes 500 Amp shunt

Specifications:
Meter - Current
Function - to 500A
Input Voltage - 8-32V DC
Alarms - High and low voltage
Maximum Power Consumption - 1 Watt
Minimum Power Consumption - 0.60 Watt
Sleep Mode - Manual
Weight - 1.11lb (0.5 kg)

Specification List

Type	Meters	Sub-Type	Digital
Weight	1.11lb (0.5 kg)	Country of Origin	USA
Tariff Code	91040000
