Blue Sea - DC Ammeter - 100-0-100A with Shunt - PN. 8253
Click to enlarge
MPN 8253
Delivery Information
Currently we only deliver to the UK (inc. Northern Ireland), Channel Islands, Norway, Australia, New Zealand, Canada and USA for online ordering - please contact us on sales@bottomlinemarine.com if you live elsewhere.
Free shipping on UK orders over £75 (£5.95 for UK orders under £75)
Excludes certain heavy items
All prices include UK VAT - No customs or duty fees for UK orders
Description

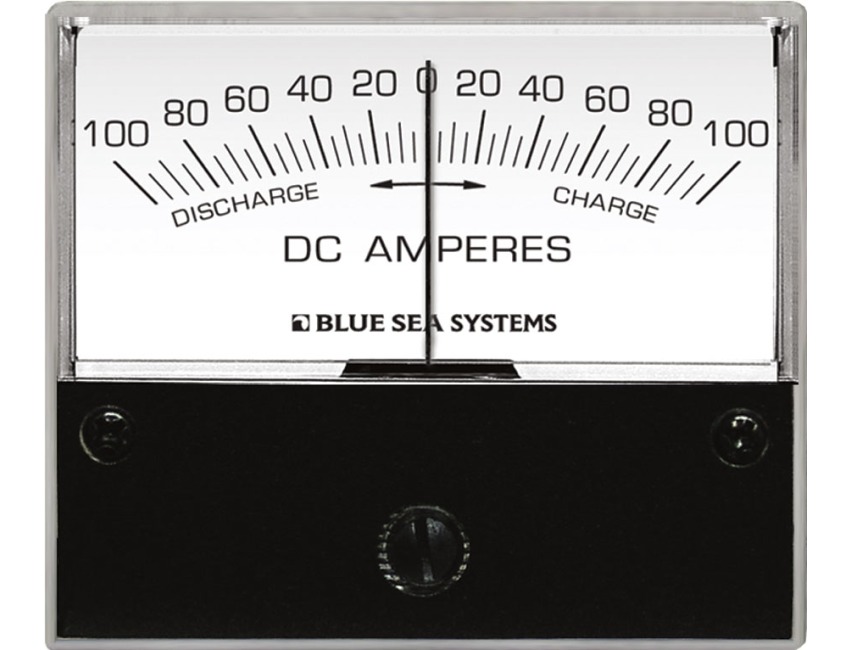

Blue Sea DC Ammeter - 100-0-100A with Shunt
Part No. 8253Meters read both discharge and charge current
Simple 4-wire connection from shunt
Meter senses and powers from shunt connection
Includes appropriate DC shunt
Backlit meter face (separate 12 or 24V DC backlight connections)
Specifications:
Meter - Current
Face Size - 2.75in (69.85 mm)
Function - 100 to 100A
Backlighting Amperage - 16mA @ 12V DC20mA @ 24V DC
Meter Current - 1mA at full scale
Shunt Type - External 50mV@full scale
Weight - 0.54lb (0.24 kg)
Specification List
| Type | Meters | Sub-Type | Analogue |
|---|---|---|---|
| Weight | 0.54lb (0.24 kg) | Country of Origin | USA |
| Tariff Code | 91040000 |
