Blue Sea - Contura Switch DPDT Gray - ON-ON - PN. 8275

Click to enlarge

MPN 8275

£22.21

Delivery Information

Currently we only deliver to the UK (inc. Northern Ireland), Channel Islands, Norway, Australia, New Zealand, Canada and USA for online ordering - please contact us on sales@bottomlinemarine.com if you live elsewhere.

Free shipping on UK orders over £75 (£5.95 for UK orders under £75)
Excludes certain heavy items
All prices include UK VAT - No customs or duty fees for UK orders

Description

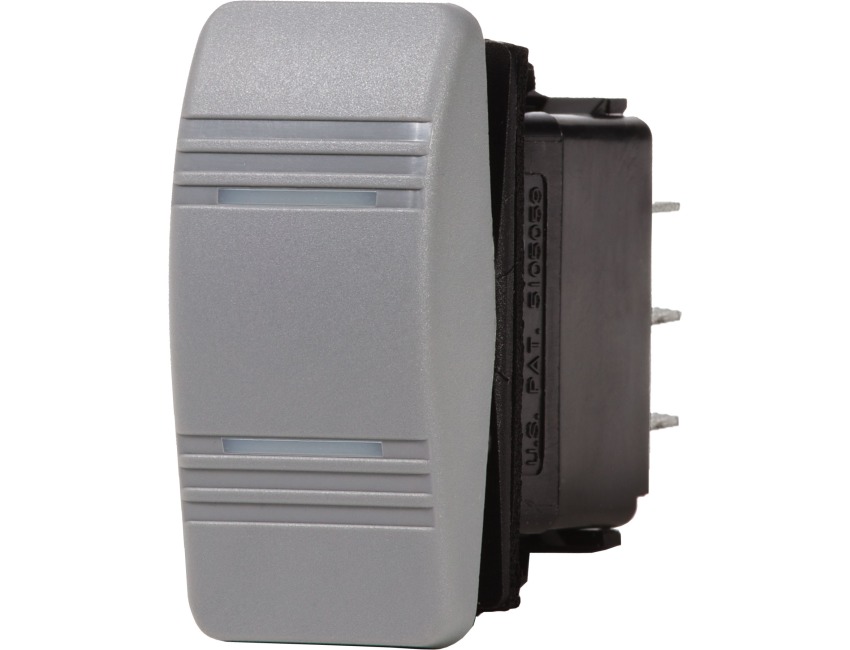

Blue Sea Contura Switch DPDT Gray - ON-ON

Part No. 8275

Vibration, shock, thermoshock, moisture and salt spray resistant
Specially manufactured for mounting in Blue Sea Systems" water resistant panels
Ignition Protected - Safe for installation aboard gasoline powered boats
Meets UL1500 and ISO8846 ignition protection requirements

Specifications:
Action - ON-ON
Pole / Throw - DPDT
Actuator Color - Gray - Contura III
Common Applications - switching between shunts or current transformers with one meter
Maximum Amperage - 20A @ 12V15A @ 24V
Amperage Operating Current - 18mA (LED)
Minimum Operating Temperature - -40° C
Maximum Operating Temperature - 85° C
Actuator Position to Light LED - ON
Embedded LEDs - 2
Lighting - LED rated 100,000 hours half-life
Seals - Internal and external gasket panel seal
Weight - 0.09lb (0.04 kg)

Specification List

Weight 0.09lb (0.04 kg) Country of Origin USA
Tariff Code 85365090 Type Switches
Sub-Type Contura
