Blue Sea - Class T Fuse Block with Insulating Cover - 225 to 400A - PN. 5502

Click to enlarge

MPN 5502

£75.27

Delivery Information

Currently we only deliver to the UK (inc. Northern Ireland), Channel Islands, Norway, Australia, New Zealand, Canada and USA for online ordering - please contact us on sales@bottomlinemarine.com if you live elsewhere.

Free shipping on UK orders over £75 (£5.95 for UK orders under £75)
Excludes certain heavy items
All prices include UK VAT - No customs or duty fees for UK orders

Description

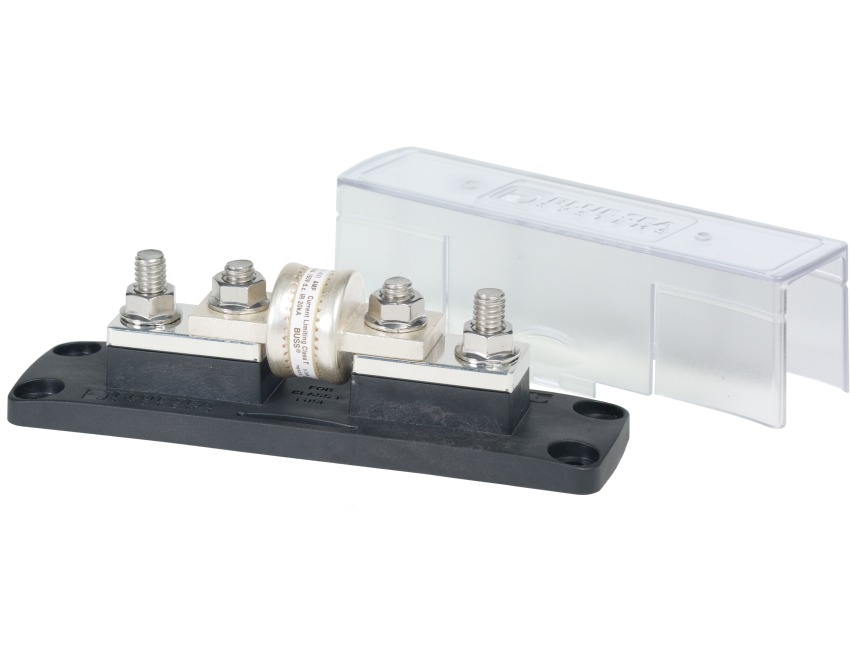

Blue Sea Class T Fuse Block with Insulating Cover - 225 to 400A (Fuses not included)

Part No. 5502

The fuse system recommended by most inverter manufacturers for high speed response to short circuits
Clear insulating cover, satisfies ABYC/USCG requirements
For use on systems up to 160 Volts DC
Large 3/8"-16 stud terminals accept ring terminals for wire up to 4/0 AWG
Large heat dissipating tin-plated copper mounting blocks
Fuse sold separately

Specifications:
Ignition Protected - No
Maximum Amperage - 400A
Maximum Voltage - 160V DC
Fuse Mounting Blocks - Tin-Plated Copper
Maximum Cable Size - 4/0 AWG
Maximum Torque - 190 in-lb (21.47 Nm)
Mounting Holes - Accept 1/4 (M6) Screw
Terminal Stud Size - 3/8" - 16 (M10)
Weight - 1.10lb (0.5 kg)

Specification List

Type Fuse Blocks Sub-Type -
Weight 1.10lb (0.5 kg) Country of Origin USA
Tariff Code 85389099
