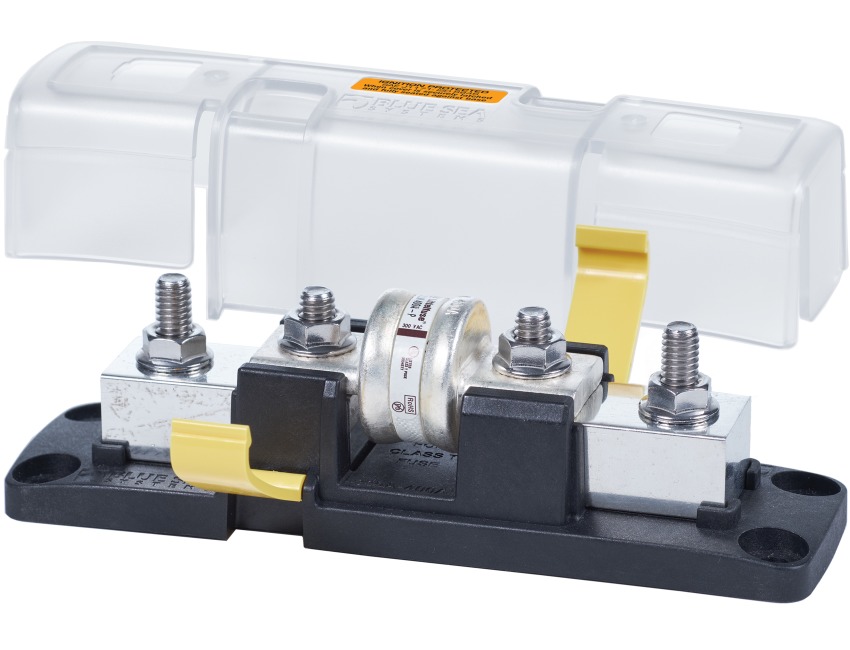

Blue Sea - Class T Fuse Block with Insulating Cover - 225 to 400A - PN. 5502100

Click to enlarge

MPN 5502100

Delivery Information

Currently we only deliver to the UK (inc. Northern Ireland), Channel Islands, Norway, Australia, New Zealand, Canada and USA for online ordering - please contact us on sales@bottomlinemarine.com if you live elsewhere.

Free shipping on UK orders over £75 (£5.95 for UK orders under £75)
Excludes certain heavy items
All prices include UK VAT - No customs or duty fees for UK orders

Description
Specification

Description

Blue Sea Class T Fuse Block with Insulating Cover - 225 to 400A (Fuse not included)

Part No. 5502100

Allows the use of Class T fuses for fast acting circuit protection of inverters and other electronics
Four stud design provides ample access around connecting stud to install large cable lugs without obstruction from the fuse
Insulating cover satisfies ABYC/USCG insulation requirements
Cover breakouts allow wire access in any direction
Stud design ensures secure fuse mounting even with high heat
Stainless steel studs provide resistance to corrosion and high torque
One-piece stainless flange nuts ensure safe and secure connections
UL 94-V0 base resists high heat
Ignition Protected

Specifications:
Cable Size - Up to 4/0 AWG
Ignition Protected - Yes
Maximum Amperage - 320A 300A if inside engine space and continuous
Maximum Voltage - 160V DC
Fuse Mounting Blocks - Tin-Plated Copper
Mounting Fastner Size - 1/4" or M6 Hardware
Terminal Stud Size - 5/16"-18 (M8)
Weight - 1.10lb (0.5 kg)

Specification List

Type	Fuse Blocks	Sub-Type	-
Weight	1.10lb (0.5 kg)	Country of Origin	USA
Tariff Code	85389099
