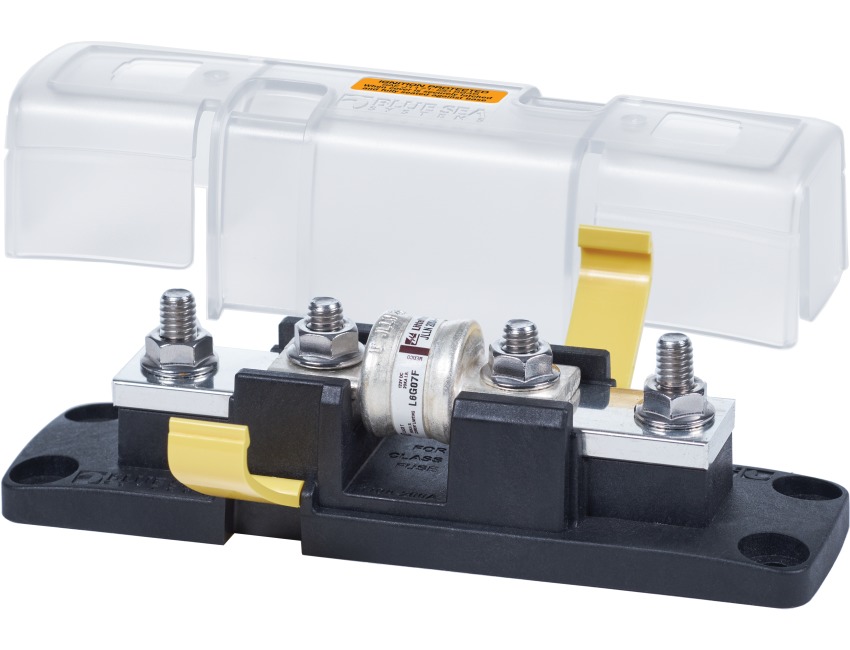

Blue Sea - Class T Fuse Block with Insulating Cover - 110 to 200A - PN. 5007100
Click to enlarge
MPN 5007100
Delivery Information
Currently we only deliver to the UK (inc. Northern Ireland), Channel Islands, Norway, Australia, New Zealand, Canada and USA for online ordering - please contact us on sales@bottomlinemarine.com if you live elsewhere.
Free shipping on UK orders over £75 (£5.95 for UK orders under £75)
Excludes certain heavy items
All prices include UK VAT - No customs or duty fees for UK orders
Description
Blue Sea Class T Fuse Block with Insulating Cover - 110 to 200A (Fuse is not included)
Part No. 5007100Allows the use of Class T fuses for fast acting circuit protection of inverters and other electronics
Four stud design provides ample access around connecting stud to install large cable lugs without obstruction from the fuse
Insulating cover satisfies ABYC/USCG insulation requirements
Cover breakouts allow wire access in any direction
Stud design ensures secure fuse mounting even with high heat
Stainless steel studs provide resistance to corrosion and high torque
One-piece stainless flange nuts ensure safe and secure connections
UL 94-V0 base resists high heat
Ignition Protected
Specifications:
Cable Size - Up to 4/0 AWG
Ignition Protected - Yes
Maximum Amperage - 160A
Maximum Voltage - 160V DC
Fuse Mounting Blocks - Tin-Plated Copper
Maximum Torque - 190 in-lb (21.47 Nm)72 in-lb (8.13 Nm)
Mounting Fastner Size - 1/4" or M6 Hardware
Terminal Stud Size - 1/4"-20 (M6)
Weight - 1.10lb (0.5 kg)
Specification List
| Type | Fuse Blocks | Sub-Type | - |
|---|---|---|---|
| Weight | 1.10lb (0.5 kg) | Country of Origin | USA |
| Tariff Code | 85389099 |
