Blue Sea - Circuit Breaker Switch Panel - Water Resistant - 4 Position - Pn. 4320

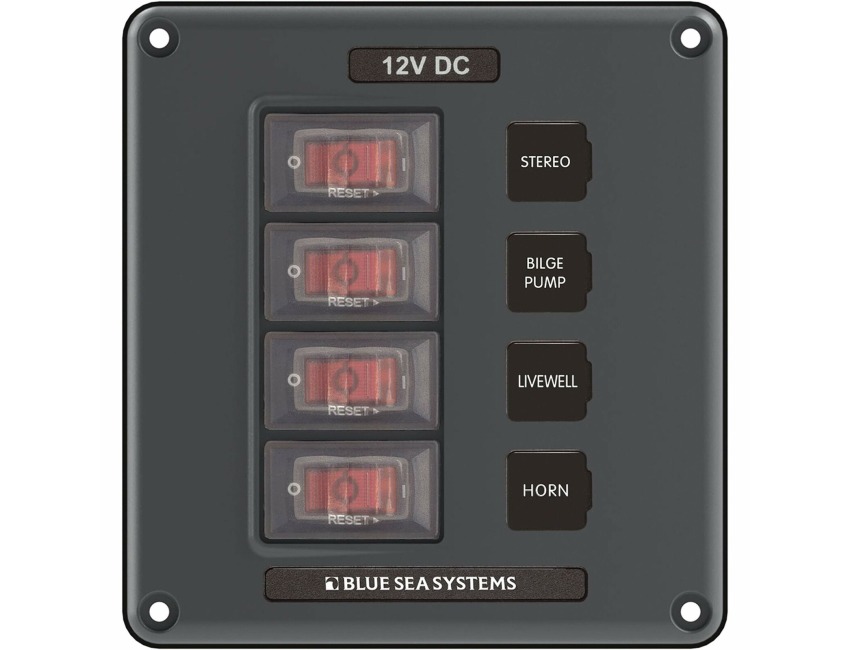

Water Resistant Circuit Breaker Switch Panel - 4 Position

PN 4320

Provides circuit protection and switching in a compact and economical panel

Designed for exposed mounting applications.

DURABLE

Molded panel frame will stand up to UV and salt air

EASY

Low profile makes it easy to install in tight spaces

SIMPLE

Fast-on circuit breaker connectors make it quick to wire

CONVENIENT

Red “ON” indicating LEDs for safe operation in low light conditions

4 Carling Technologies™ 15A circuit breakers

Illuminated ON indication

Polycarbonate/ABS panel surface is UV-stabilized, flame retardant, and will not corrode

Quick connect BUS eliminates wire harness and clutter contributing to a low profile panel

Two-wire connection for powering all panels is simple and requires #10 ring terminals.

Terminals screw to bus bars for secure connections

Set of 15 square format circuit labels are included, and are easy to replace.

Additional standard or custom labels are available

Stainless steel #6 × 5/in mounting screws included

Specifications:

Positions - 4

Nominal Voltage - 12V DC

Maximum Amperage - 45A

Terminal Type - 1/4in Male quick connect

Hardware - Stainless Steel #6 × 5/8in mounting screws

Ring Terminal Size - M5 (#10)

Height - 5.7in (144.78 mm)

Width - 4.25in (107.95 mm)

Depth - 1.75in (44.45 mm)
