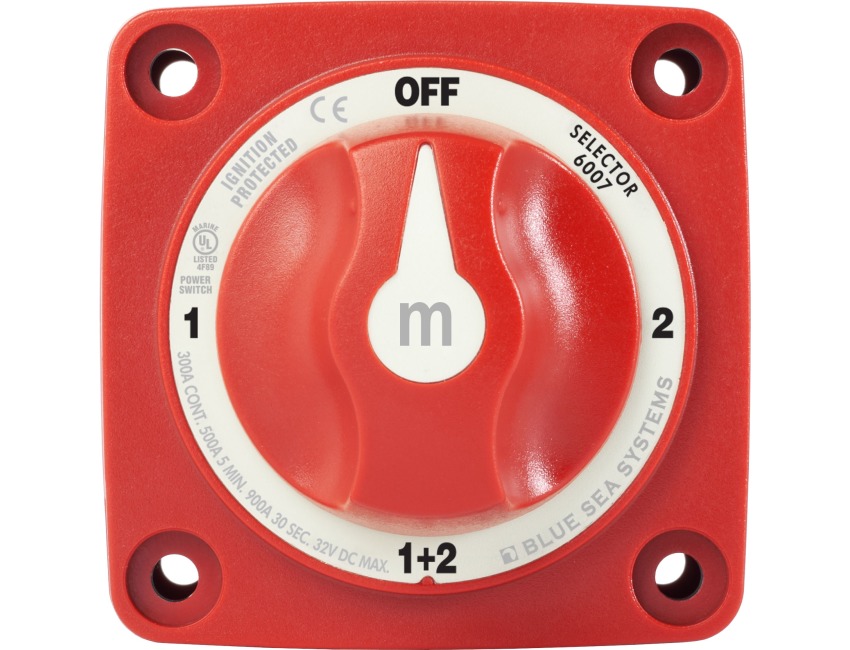

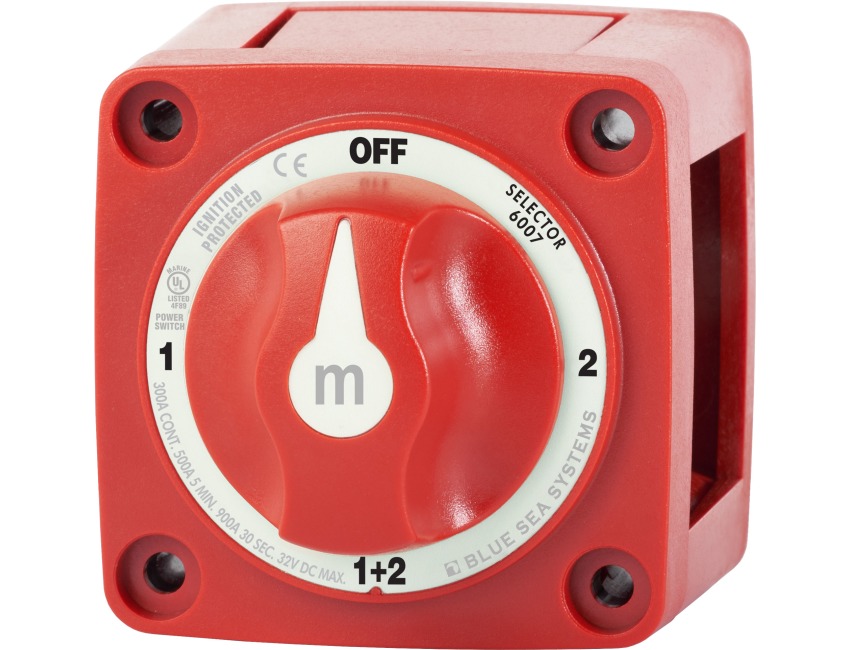

Blue Sea - Battery Switch - Mini - Marine rated - IP66 - 4 Way -OFF/1/2/1+2 - PN. 6007

Blue Sea - Battery Switch - 4 Way

PN6007 - Marine rated - IP66 - OFF/1/2/1+2

- Switches isolated battery banks to all loads or combines
battery banks to all loads
- Rated for 2000 amp cranking for 10 seconds (300amp continuous)
- Make-before-break contact design allows switching between
battery banks without power interruption
- Ignition protected safe for installation aboard petrol powered
boats
- Case design allows surface, front panel, or rear panel mounting

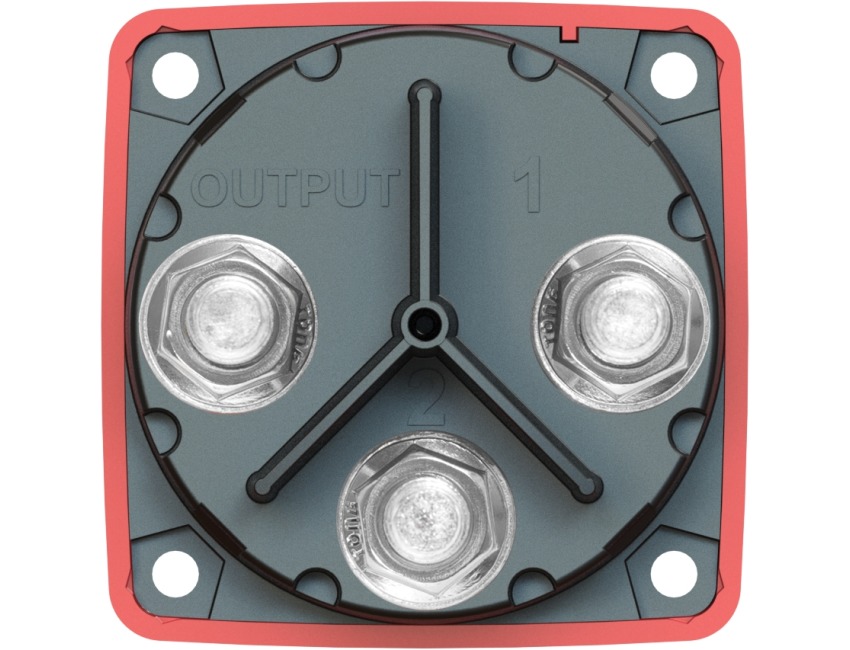

- Isolating cover with snap-on sections protects rear contacts

Specifications

Cranking Rating: 10 sec. 2,000 Amps Cranking Rating: 1 min. 1,000 Amps Intermittent Rating: 5 min. 500 Amps Continuous Rating 300 Amps Maximum Voltage Rating 32 Volts DC Terminal Stud Size 10mm Terminal Stud Torque 140 in-lb (15.8 Nm) max. Mounting Holes Accepts #6 Screws Cable Size to Meet Ratings up to 120mm Cable Clearance For Cables up to 27.9mm Operation: On 1 / On 2 / Both / Off Size: 71.76mm Square and 77.94mm high.
