Blue Sea - A-Series White Toggle Circuit Breaker - Double Pole 32A - PN. 7295

Click to enlarge

MPN 7295

£47.56

Delivery Information

Currently we only deliver to the UK (inc. Northern Ireland), Channel Islands, Norway, Australia, New Zealand, Canada and USA for online ordering - please contact us on sales@bottomlinemarine.com if you live elsewhere.

Free shipping on UK orders over £75 (£5.95 for UK orders under £75)
Excludes certain heavy items
All prices include UK VAT - No customs or duty fees for UK orders

Description

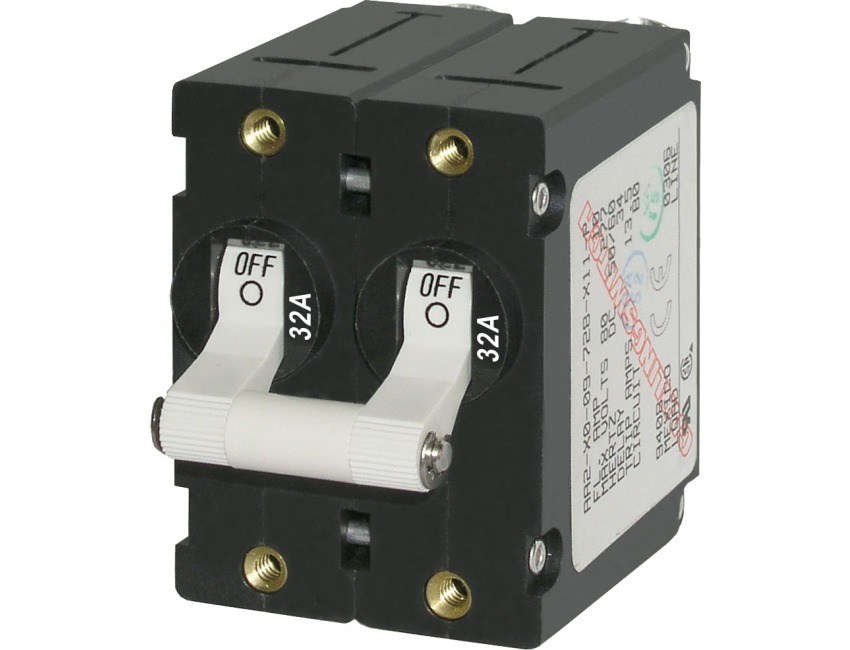

Blue Sea A-Series White Toggle Circuit Breaker - Double Pole 32A

Part No. 7295

Specifications:
Amperage - 32A AC32A DC
Color - White
Actuator Style - Toggle
Poles - 2
Maximum Voltage - 120V AC240V AC65V DC
Circuit Breaker Type - Magnetic Hydraulic - trip free
Interrupt Capacity - 3000A @ 120V AC3000A @ 240V AC1500A @ 240V AC [TUV]3000A @ 240V AC [UL 1077]7500A @ 65V DC
Minimum Operating Temperature - -40° C
Maximum Operating Temperature - 85° C
Mounting Screw - #6-32 Stainless Steel
Mounting Screw Torque - 6 in-lb (0.68 Nm)
Screw Terminal Torque - 14 in-lb (1.58 Nm)
Switching Cycles - 10000
Terminal Screws - #10-32 Stainless Steel
Weight - 0.30lb (0.14 kg)

Specification List

Type Circuir Breaker Sub-Type A-Series
Weight 0.30lb (0.14 kg) Tariff code 853620
Country of Origin USA
