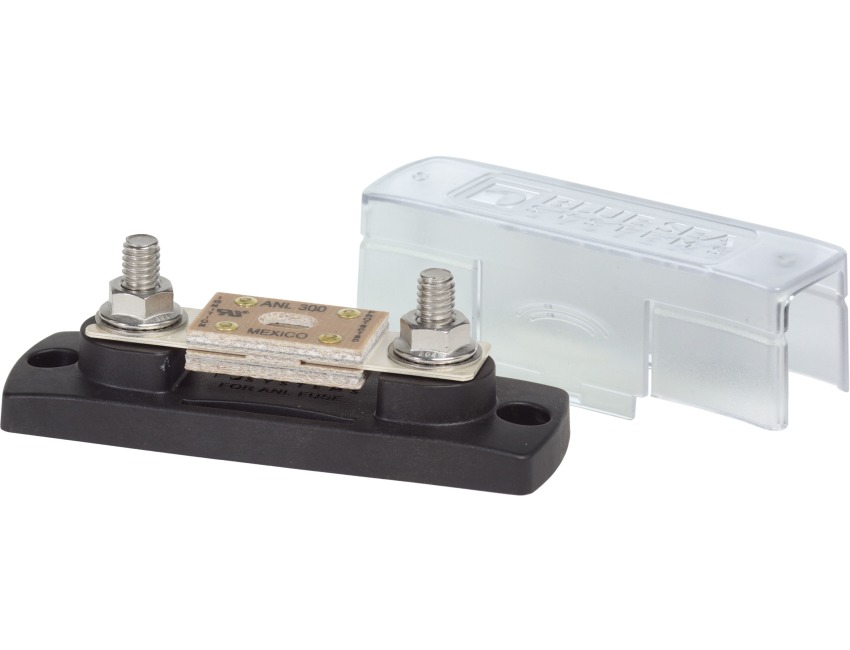

Blue Sea - ANL Fuse Block with Insulating Cover - 35 to 300A - PN. 5005

Click to enlarge

MPN 5005

Delivery Information

Currently we only deliver to the UK (inc. Northern Ireland), Channel Islands, Norway, Australia, New Zealand, Canada and USA for online ordering - please contact us on sales@bottomlinemarine.com if you live elsewhere.

Free shipping on UK orders over £75 (£5.95 for UK orders under £75)
Excludes certain heavy items
All prices include UK VAT - No customs or duty fees for UK orders

Description
Specification

Description

Blue Sea ANL Fuse Block with Insulating Cover - 35 to 300A (Fuse is not included)

Part No. 5005

Accepts 5/16" (M8) ring terminals
For use on systems up to 32 Volts DC
Swing out design allows replacement of the fuse without removing fasteners
Stainless steel studs provide resistance to corrosion and high torquing for excellent electrical contact
UL 94-V0 base resists high heat
Insert molded studs ensure secure fuse mounting
Insulating cover satisfies ABYC/USCG requirements
Cover breakouts allow wire access in any direction
Fuse sold separately

Specifications:
Maximum Voltage - 32V DC
Base Material - Reinforced Polycarbonate
Fuse Mounting Blocks - Tin-Plated Copper
Maximum Cable Size - 2/0 AWG
Maximum Torque - 110 in-lb (12.43 Nm)
Terminal Stud Size - 5/16" - 18 (M8)
Weight - 0.35lb (0.16 kg)

Specification List

Type	Fuse Blocks	Sub-Type	-
Weight	0.35lb (0.16 kg)	Country of Origin	USA
Tariff Code	85389099
